Deep Dish, Help Please?

[EssCee]

Hi Guys,

I have seen numerous photos of EK's with what looks like Deep Dish steelies on them.

I have HK Kingswood 14x6's on my Wagon at the moment and i want them OFF !!!
Can anyone point me in the right direction on how i get the set up? Any help would be appreciated.

Thanks

(I have a HR Disc Brake front end)

[Mick]

withou knowing what you want as far as wheels go i can't help much BUT i could be interested in those 14x6" wheels if they are 6" and not just standard

[mph]

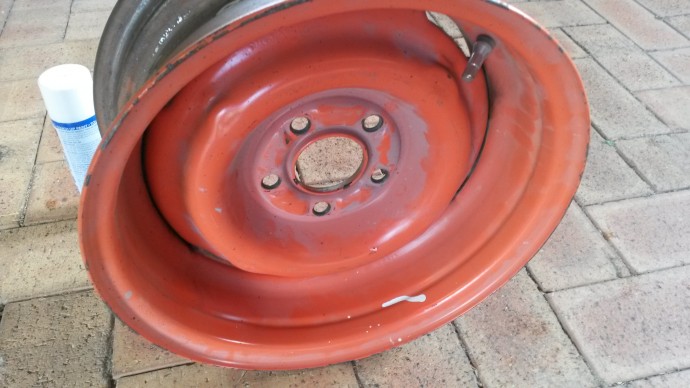

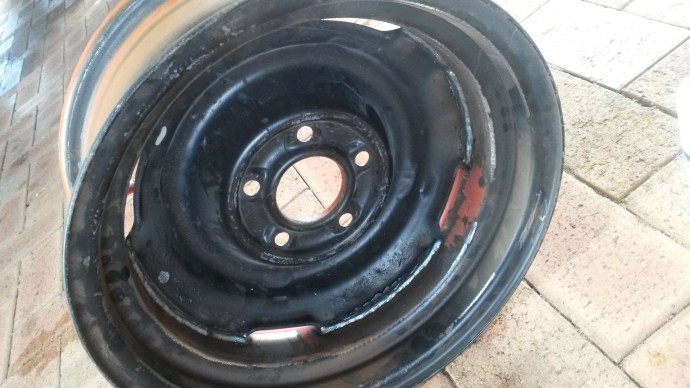

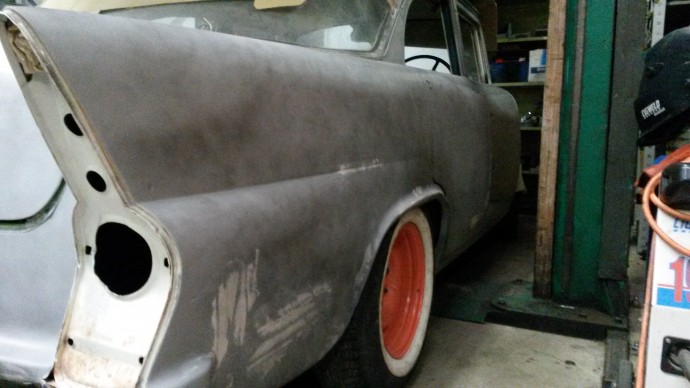

I had mine (hg 14's) done by a guy in WA, the offset was to wild so i had them pulled in slightly , the rim is also flipped so you cant run a chrome trim ring im told yet to test.
At first he tried to recomend another guy but because im a mate of a mate of a mate etc he said he would do them.
If you would be interested in sending them across Aus or something ill find his details

[Trev]

Hi Guys,

I have seen numerous photos of EK's with what looks like Deep Dish steelies on them.

I have HK Kingswood 14x6's on my Wagon at the moment and i want them OFF !!!
Can anyone point me in the right direction on how i get the set up? Any help would be appreciated.

Thanks

(I have a HR Disc Brake front end)

To get any kind of dish on the rear you should start with a LJ Torana rear end.

[Blacky]

I have reversed 7"rims on my ute with a stock front end and Torana diff and have no clearance issues but the increased scrub radius makes it heavy to steer- but they are 13" , Trevs (now Oli's) wagon looked the goods and I have thought about converting to 14" to get the same look.

[mph]

Hi Guys,

I have seen numerous photos of EK's with what looks like Deep Dish steelies on them.

I have HK Kingswood 14x6's on my Wagon at the moment and i want them OFF !!!
Can anyone point me in the right direction on how i get the set up? Any help would be appreciated.

Thanks

(I have a HR Disc Brake front end)

To get any kind of dish on the rear you should start with a LJ Torana rear end.

If you can find one, i was looking for one to go down this path but with no luck had the rims pulled in 30mm,Vehicle still to lowered some more.

[FBeing]

Go and see Wal from Neale Wheels if you want get some made.
He did my ROH 15 x 7 steelies

Obviously it'd be cheaper to get some already out there

[Blacky]

The W.A. equivalent of Neales Wheels is Stan at Wheelmodz - he is THE man to see in W.A. for wheel modification, fabrication , etc.

See here - https://www.facebook.com/media/set/?set ... 089&type=3

[rosco]

I'm in the middle of this battle at present - but with Dragway alloys.
I have HR front end and EH rear.

If you go 14x7's - and want all wheels identical, you'll have issues with the front upper ball joint at full deflection (relieved).
I have fitted 2 X-U1 spacers each side - and all front issues are resolved.

The rears will scrub on the 2/3 mark back along the wheel arch if your outer rim is more than 3 3/8" from the wheel mount face on a 54 1/2" rear housing.

Fitting anything on top of the left hand side spring in the form of an over-rider to the rear of the axle, which protrudes inwards will foul the spare wheel well....

If you go the Torana rear housing - I'm a bit concerned the inner tyres will foul the body frame in the wheel arch on mine - and I expect the same with others.

I run "high" - I appreciate many/most now run very low to the ground.

We scrubbed a couple of times yesterday on it's maiden run - bottomed out pretty heavy on a ditch at speed on the blacktop.
Even thought he over-riders are wound up pretty tight - and the adjustable Koni shockers were wound out another turn - there was still a good 1 1/2 inches of upwards travel when be bottomed - that is evident by the scrape on the wheel-well...

Make absolutely certain you get your offset right... 14 x 6" wheels shouldn't be an issue - but you'll need to get clearance under the outer wheel arches if you intend to run it lowered.
14 x 6's wont be an issue up front - it's the upper ball joint housing which scrubs with 7's... tie rod end is fine.

frats,
Rosco
