Chev EK

[FireKraka]

Hey Greg I've been along this road quite a bit with my Ute, I had a vibration that I just couldn't solve, turned out to be something totally different but I still did a fair bit of research on what goes on, I did put wedges in as Clay says.

From what I read and looked at on You Tube (some really good vis on this subject) they say you should have 2 degrees down at the pinion to allow for pinion roll on acceleration in a leaf spring car this allows for the pinion to lift to the correct angle when accelerating.

I never took much notice when I was building the Ute but with the wagon I'm building I've been really conscious of it, with the independent rear end there is no pinion roll so I have had to make sure that I got the gearbox at the correct angle to the diff instead of the other way around.

I'm sure you will sort it mate.

[EK283]

Thanks Neil,

Its an issue many of us come across, and overall its the learning and conquering thats most satisfying. The caltracs i use stop the diff rotation but its the anticipated axle wrap under normal driving conditions with leaf springs thats a bit of guess work.

After waving goodbye to a Nomad FBer and his lovely wifes 2 day visit I managed to get some time in the shed.
Welded the sadles back in and painted so I can re install today.


cut outs.jpg (123.15 KiB) Viewed 147 times


bump stop.jpg (77.89 KiB) Viewed 147 times

The saddles are quite thick and thats good, so fingers crossed the amount i cut out will work, we shall see.

Greg

[Errol62]

Hi thanks for having us mate. And that’s good. You’ve lighten the car a bit too laughter gotta love this voice to text.


Sent from my iPhone using Tapatalk

[EK283]

Hi thanks for having us mate. And that’s good. You’ve lighten the car a bit too laughter gotta love this voice to text.


Sent from my iPhone using Tapatalk

Clay, Your welcome,

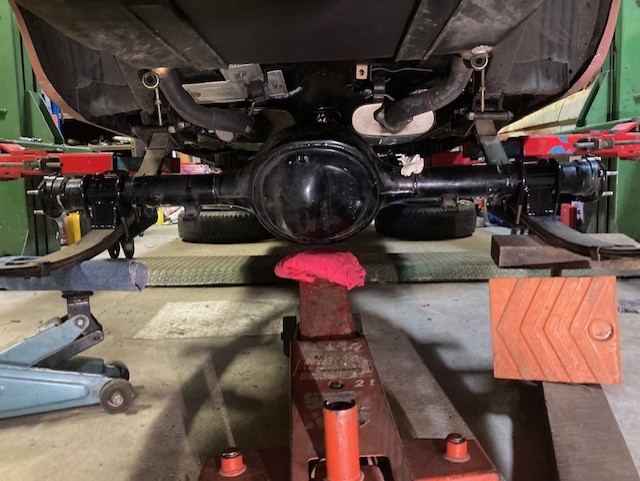

Got the diff center and housing back in, bloody big and heavy bugger.

diff back in.jpg (92.91 KiB) Viewed 114 times

Get all the rest back in during the week, test on the weekend hopefully then a big wash !

Greg

[Blacky]

Typical- the bloody freeloading croweater disappeared when the heavy lifting started


Sent from my iPhone using Tapatalk
