Decided to get a tailshaft made so that I can physically check alignment of gearbox and diff, then I can lock down the engine mounts and finish the gearbox mount.
Final drive have made my last two tailshafts so it was a no brainer to go back to them.

Image (1).jpeg (213.7 KiB) Viewed 600 times

They provide an adapter at the diff end that eliminates the rubber donut that VE diffs use and gives you a Uni joint at both the diff and gearbox ends.

Image (2).jpeg (258.78 KiB) Viewed 600 times

Not cheap but really great quality.

[Harv]

[Errol62]

Very noice mate.

[FireKraka]

Got into the workshop this weekend and after having the engine and gearbox in and out 3 times I finally got it to where I think it is closest that I can get it to the right angle and the tailshaft again as close as I can get it.

Image (3).jpeg (251.22 KiB) Viewed 544 times

Welded the mounts in fully.

Image (5).jpeg (264.51 KiB) Viewed 544 times

Relieved the chassis to be able to get the oil filter in and out.

Image (4).jpeg (214.39 KiB) Viewed 544 times

Think the tailshaft is close or as good as I can get it

Image (6).jpeg (123.64 KiB) Viewed 544 times

[Errol62]

Great progress Neil


FB ute fixer upper, EK van on rotisserie

[FireKraka]

Not as much as I really want Clay but I don't have the luxury of walking out the back door and going into my workshop anymore so I'm trying to get as much done as I can.
I'm still waiting on spindles from Stub Tech, once I have the front on wheels the Rev is going to Keith to get the last big bit done, the replacement of the upper firewall and dash.
Engine needs to be overhauled/refreshed soon and then all the rest mate.

[melly]

Just caught up on the progress of the reverend Neil- great job, that’s some good looking gear you’ve got there. Impressive work

Cheers melly

[FireKraka]

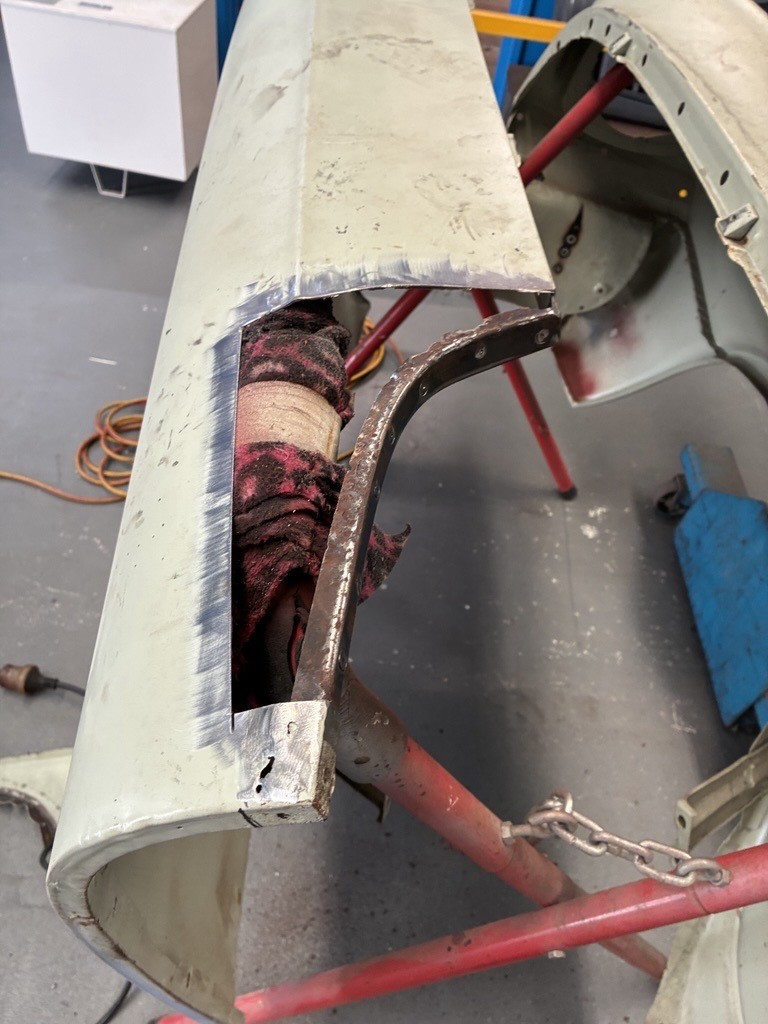

Have started work on the repairs on the guards, usual place

Image (1).jpeg (196.76 KiB) Viewed 179 times

Image (2).jpeg (154.43 KiB) Viewed 179 times

trying to make headway

[Errol62]

Brings back nightmares, trying to get that crease along the top right. Very slightly convex.


FB ute fixer upper, EK van on rotisserie

[EK283]

Ha Ha Nightmares,

Sometimes I sit back and ask myself why do we punish ourselves with these dinosours, but then reality hits, what else is there to do ???

Good Job Neil, Fun Fun Fun.

Greg

[Brett027]

Have started work on the repairs on the guards, usual place
Image (1).jpeg
Image (2).jpeg
trying to make headway

I may have a patch panel for that Neil if you are interested. I had one for each guard, but used one on Wilma. Will have a look if you are keen.

[Brett027]

Not much left and both bits LHS.

[FireKraka]

Thanks for the offer Brett but I have a pair of old Taylors panels that have the sides as well as the top sections.

And yes it is hard to get the top line lined up properly that's why I didn't show the photo of the passenger side I tacked in, got it slightly out so am going to have to go back and cut again, oops
