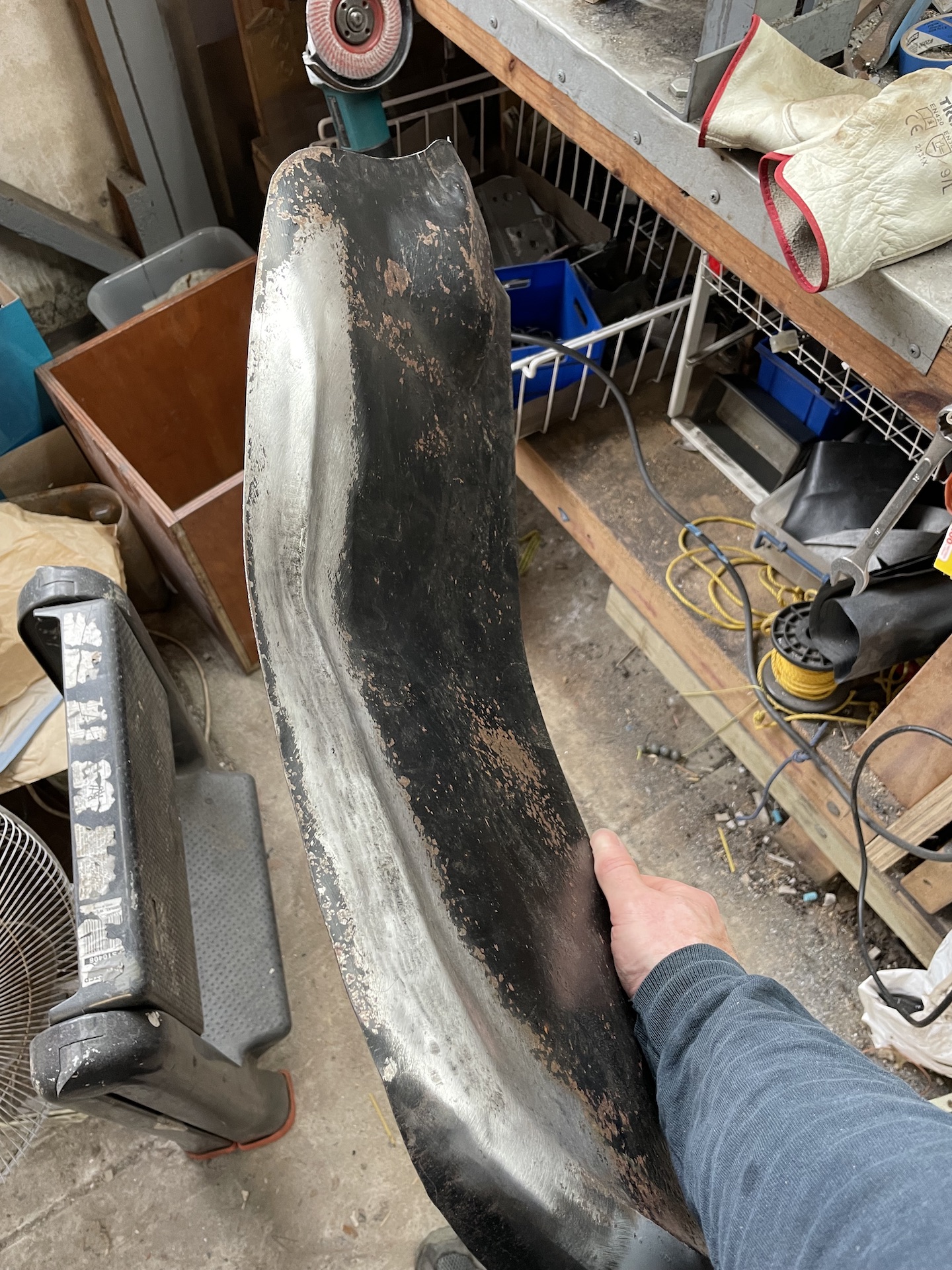

Had a go at shaping the rear quarter panel with my knee to see if I could get a bit of curve in the panel. Well got a bit more than I need....


Decided might be about the right time to straighten it out, and put it in a nice warm acid bath.

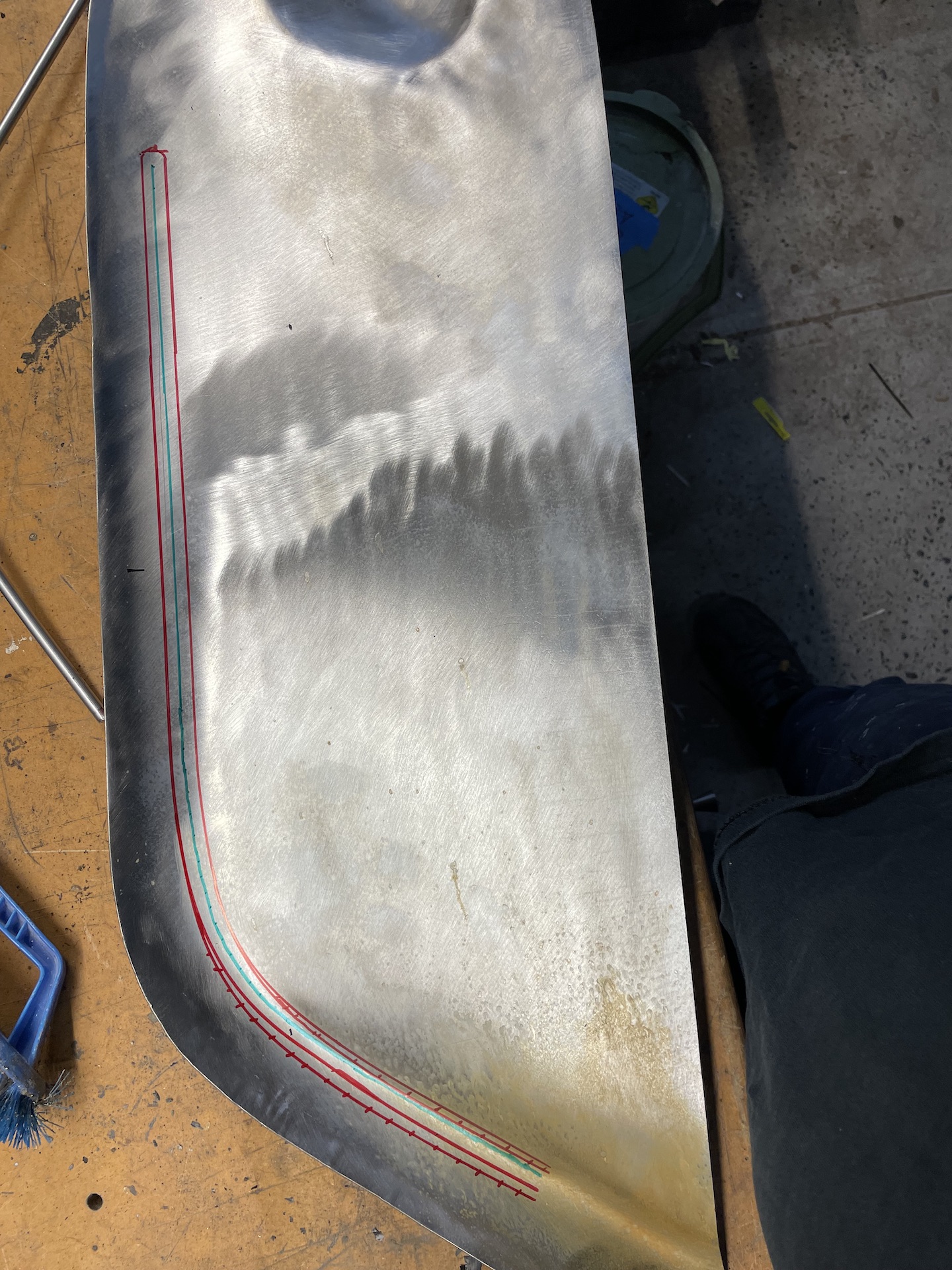

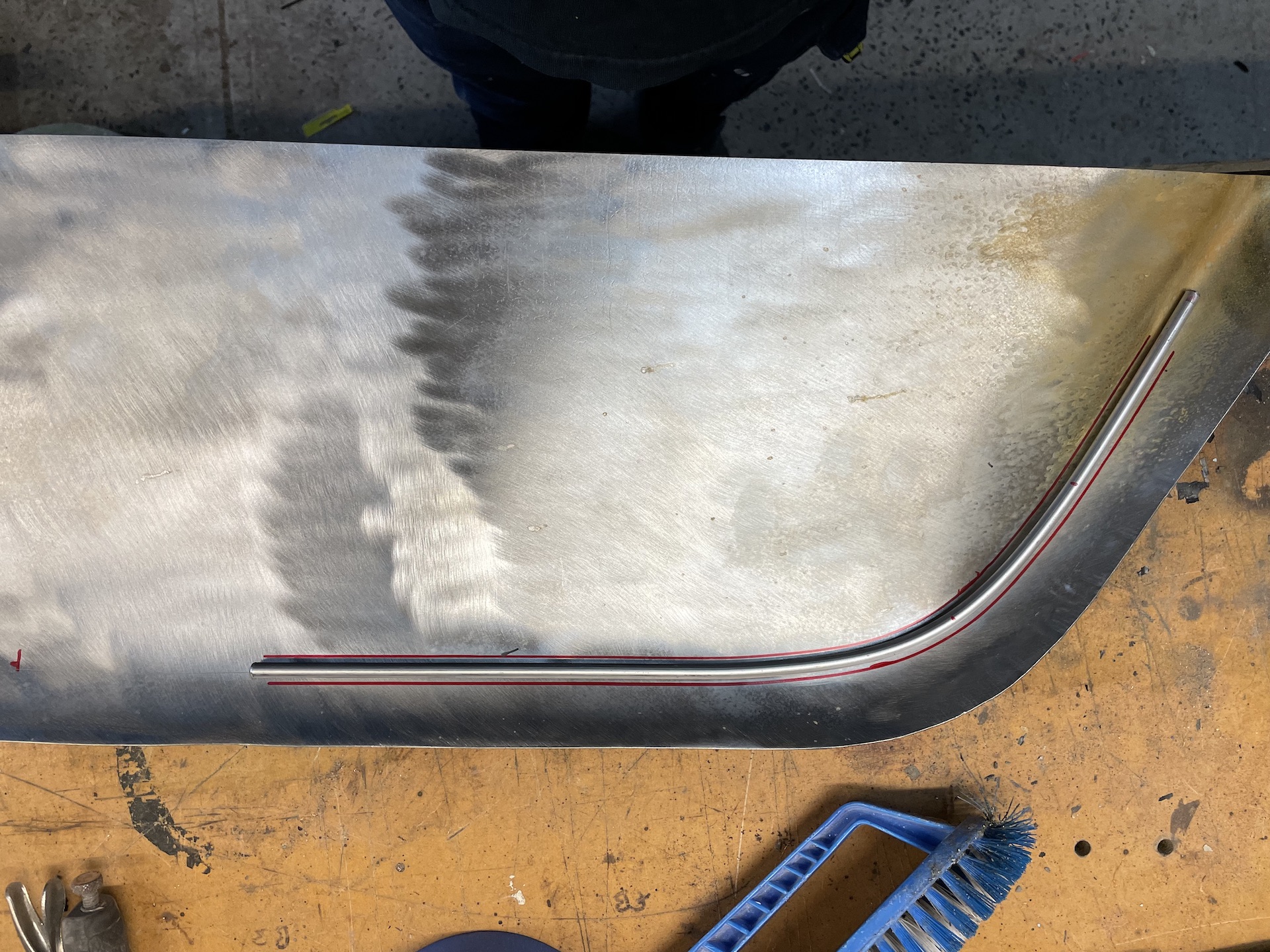

Swapped it with the passenger side which had been soaking for a few days. With a quick wire brush this one scrubbed up alright. The rod I used first time round is great to draw out the line to use as a guide on the inside of the panel

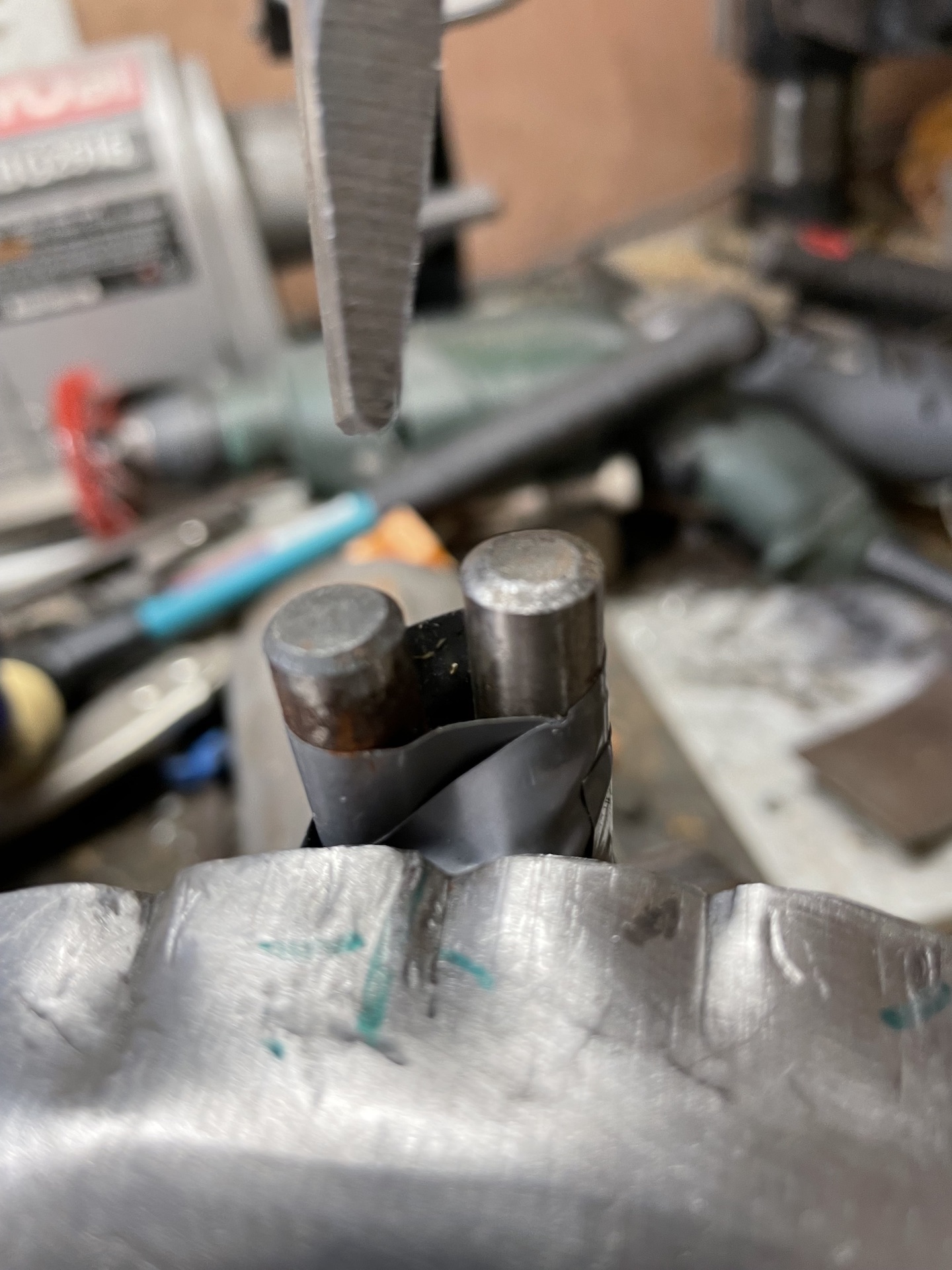

Repeated the process from earlier. To help the panel curve I shrunk it a bit more. Cold chisel, a couple of old drill bits with a washer between them and some ducting tape does the job.

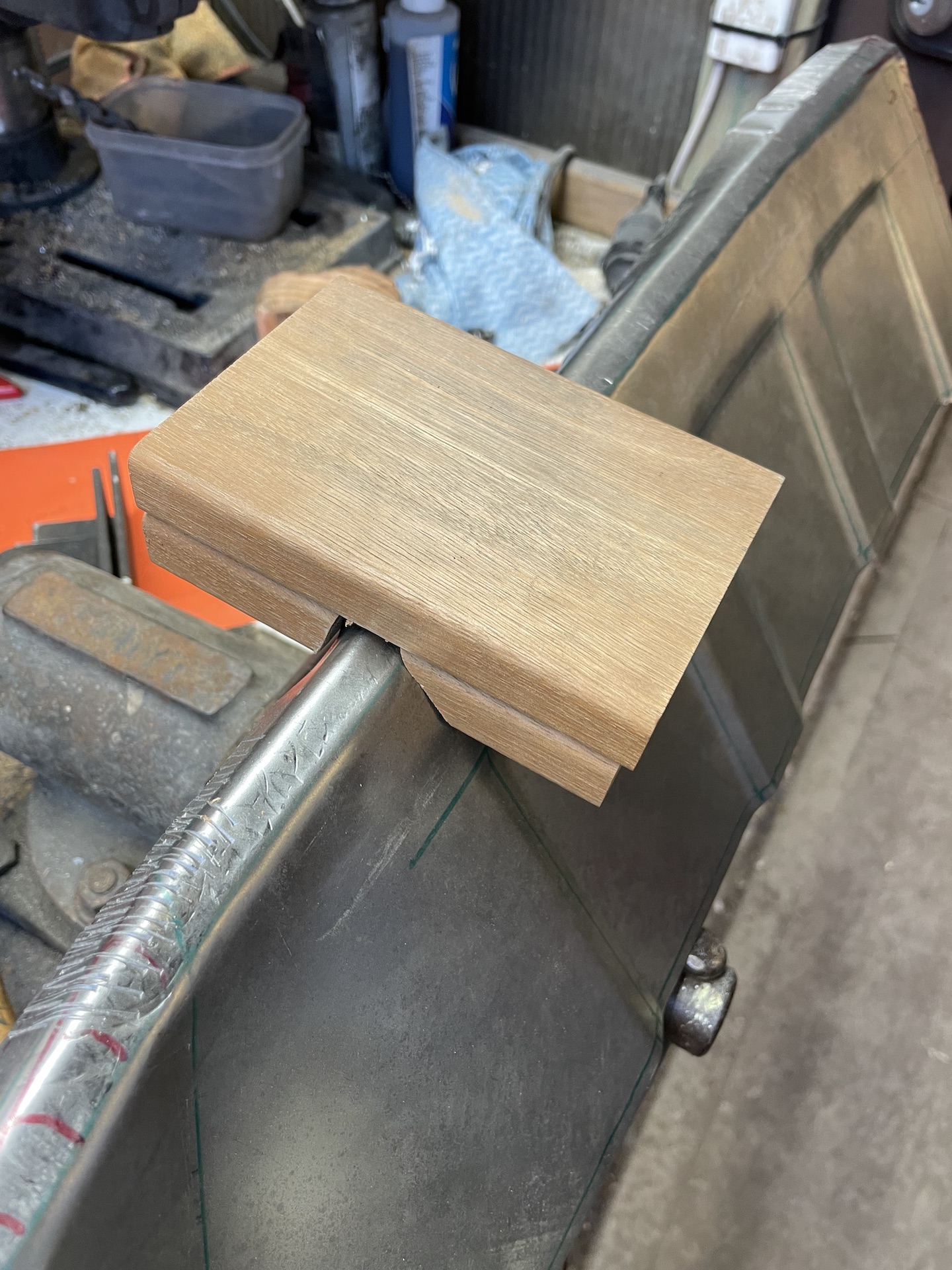

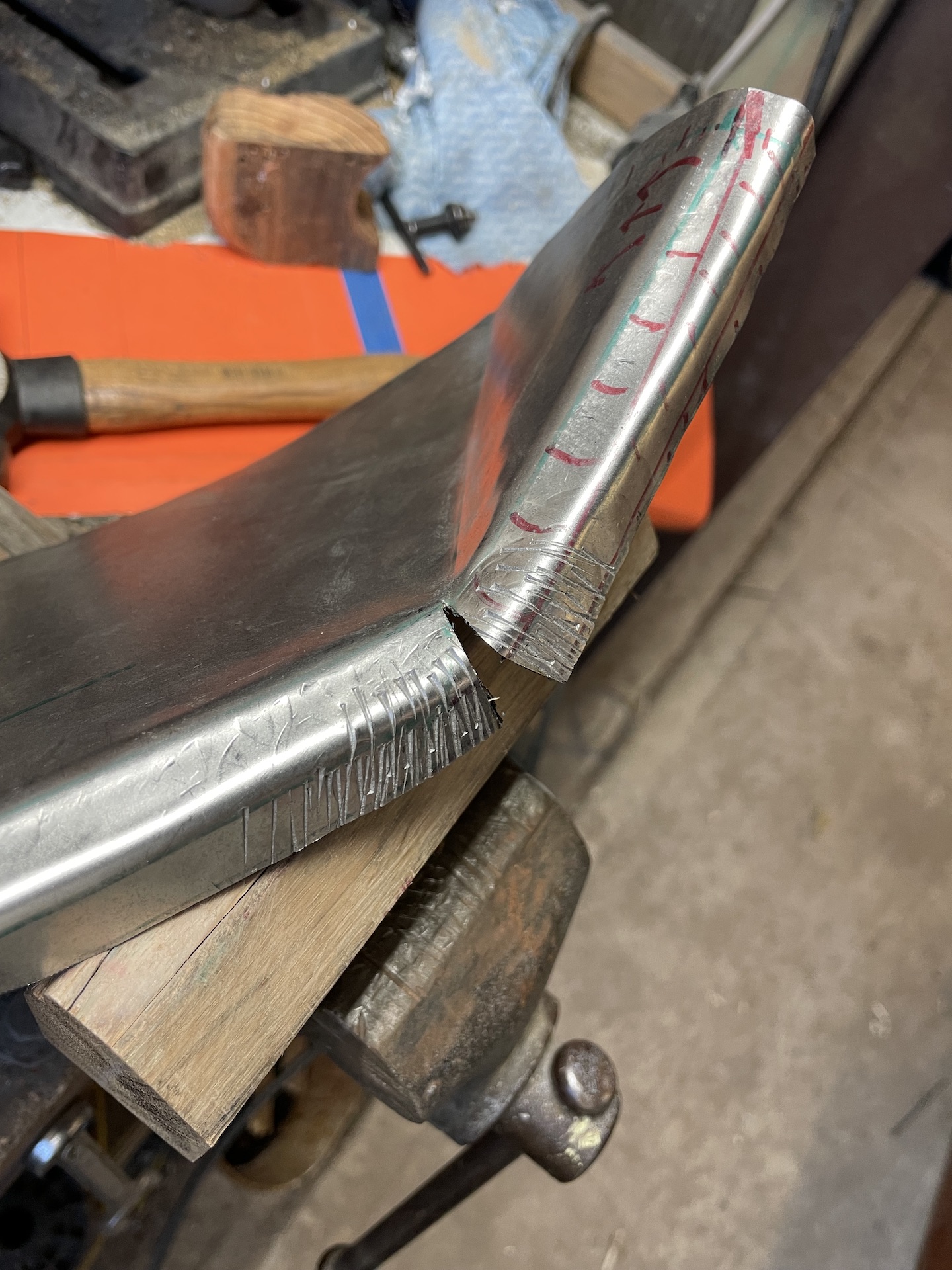

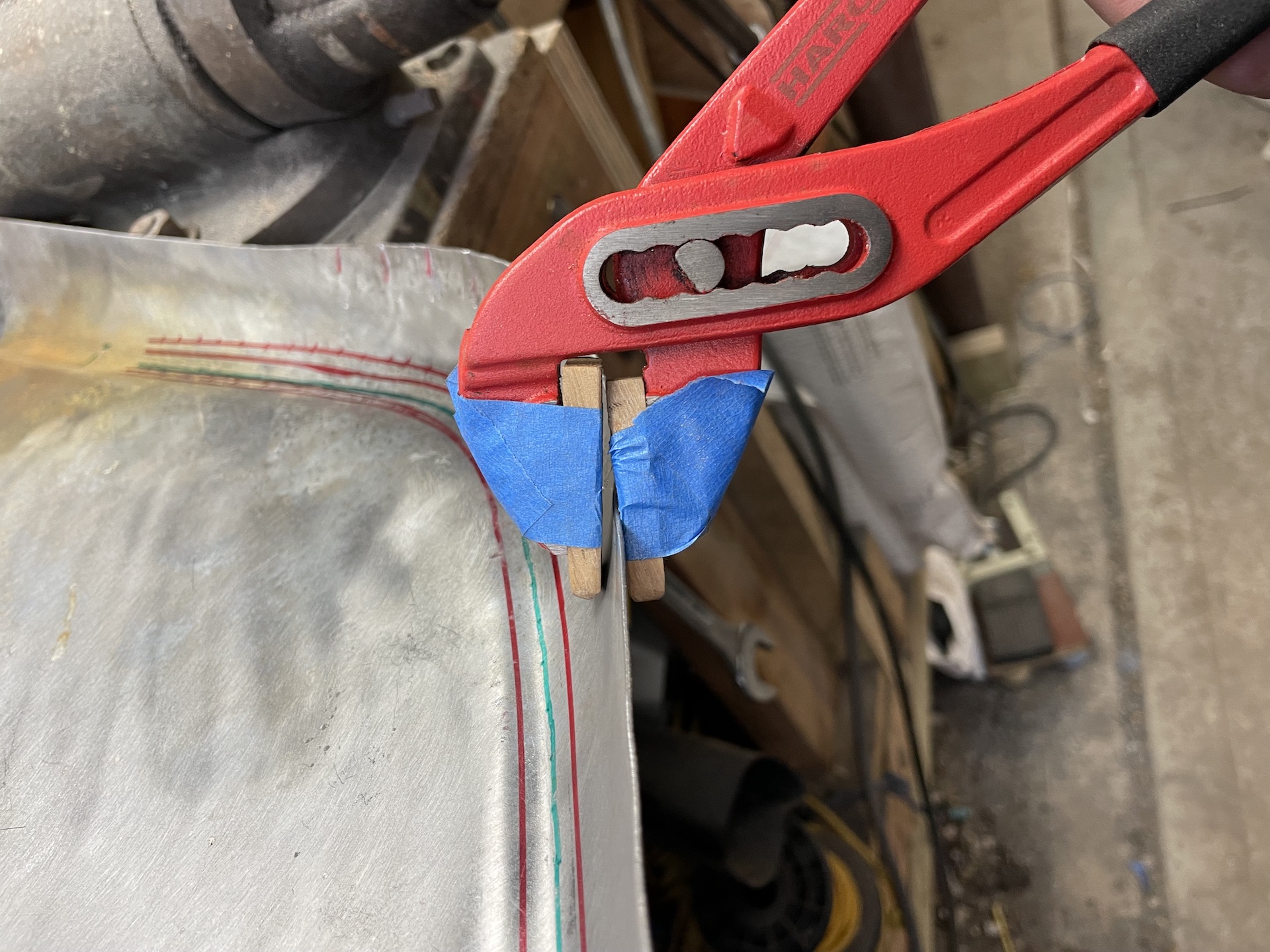

Using a shifter to help with the bends leaves little scratches so I decided to make some soft jaws out of hard wood and masking tape.

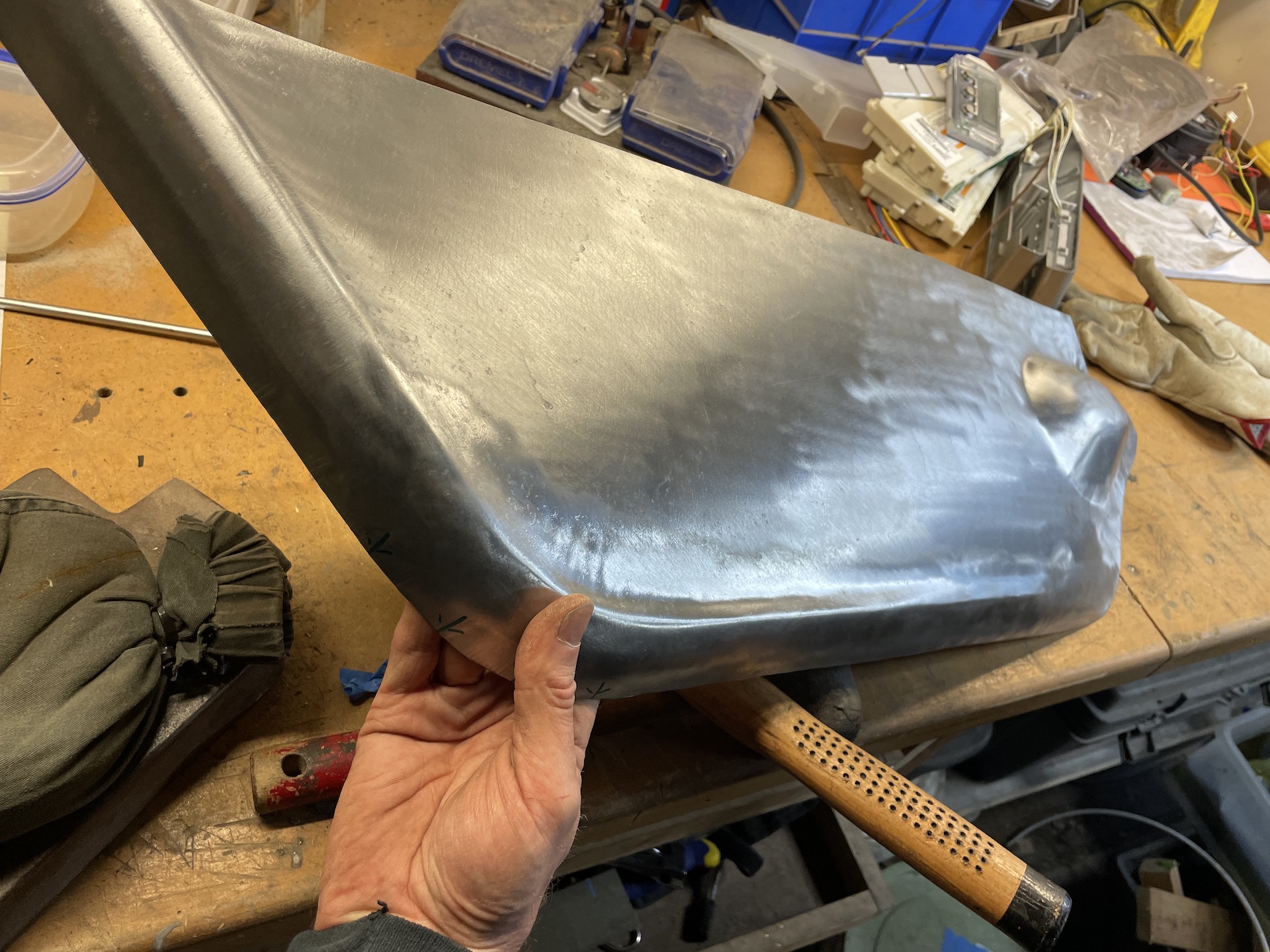

Here is the result


[funkyscooter]

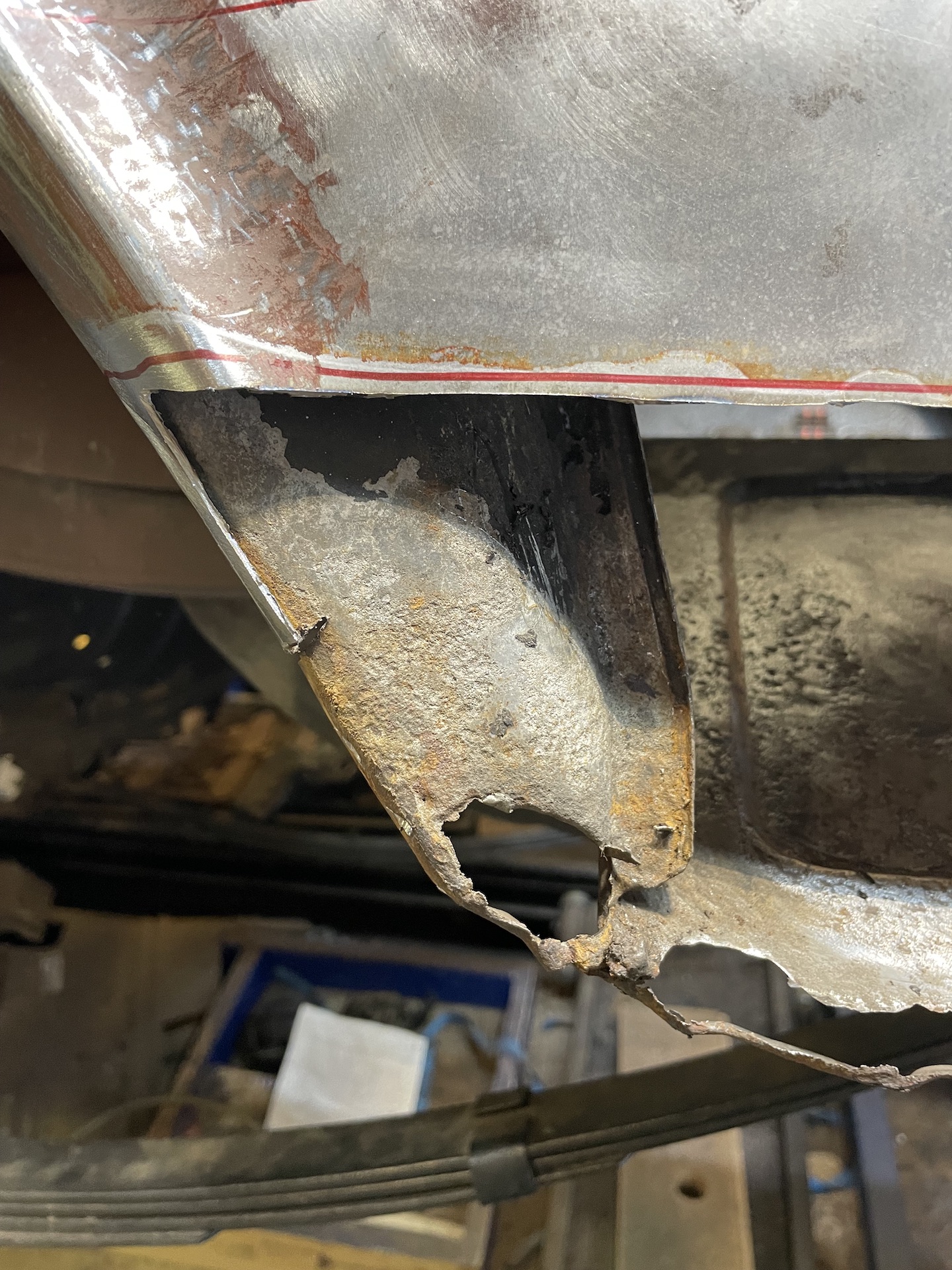

Time to crack this open. My though process is to remove as little as possible for now, and keep as much in place to help guide the replacement metal. So first remove outer skin.

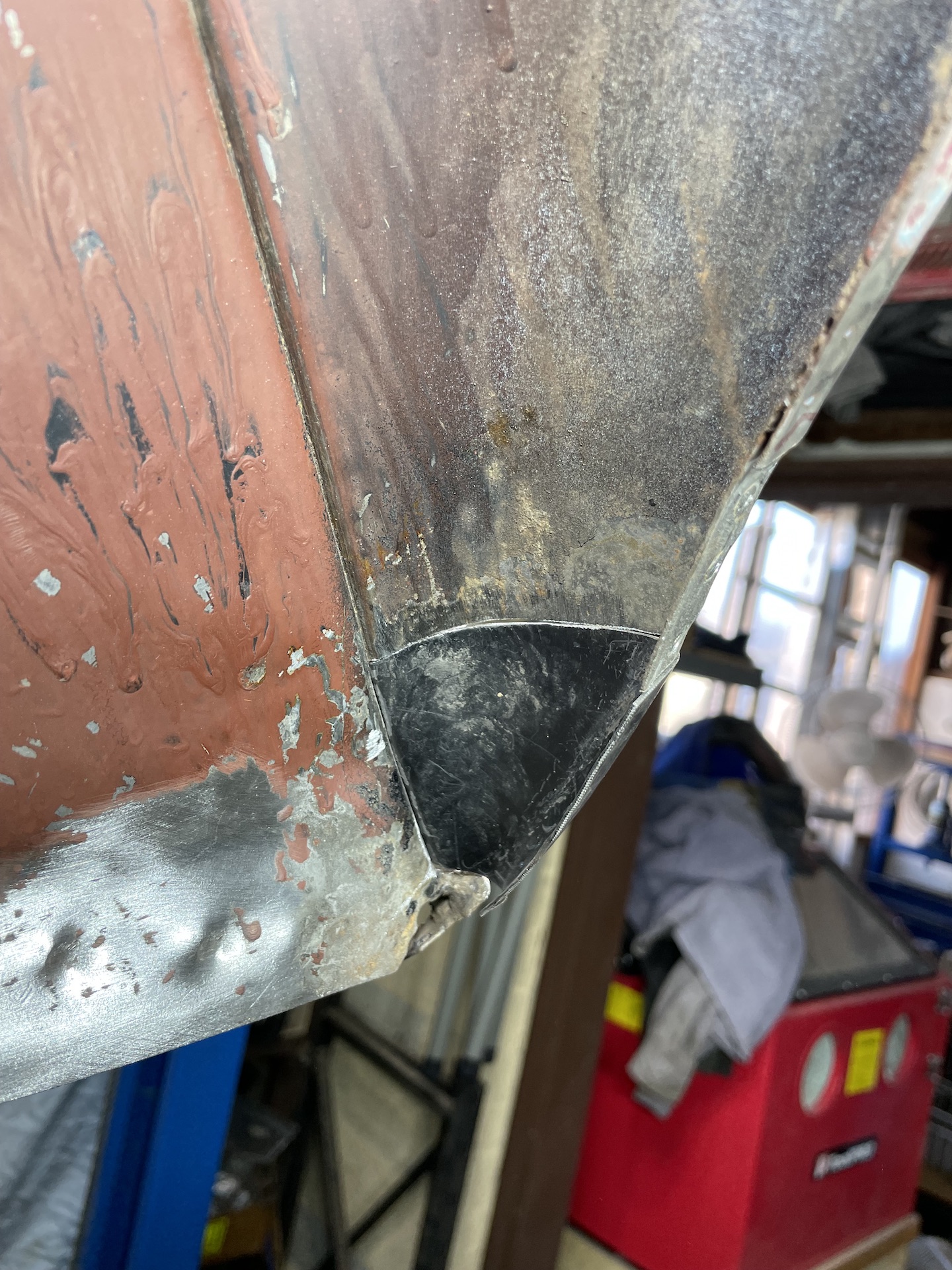

This is a bit janky above the rusty hole in the wheel arch so starting here

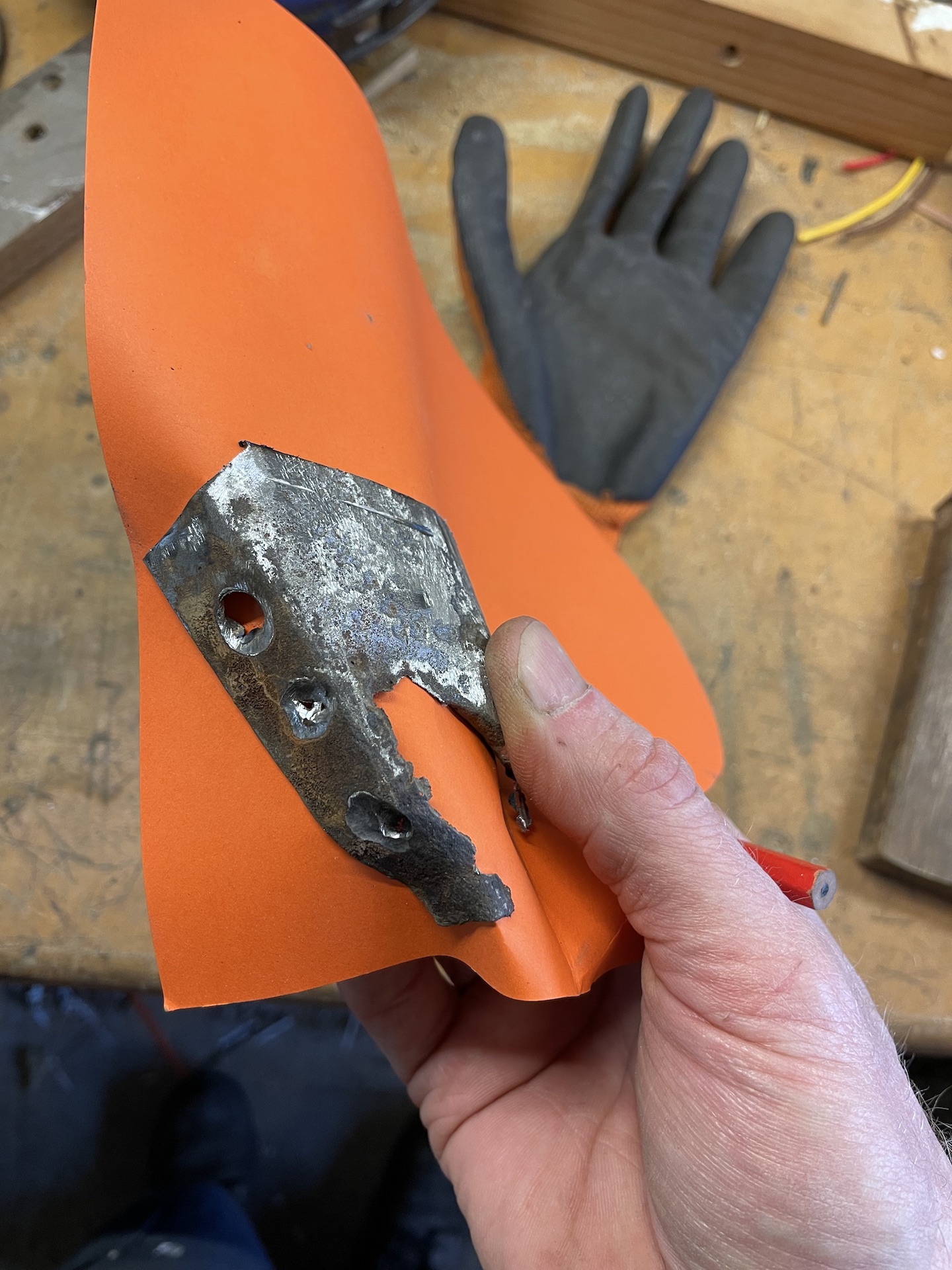

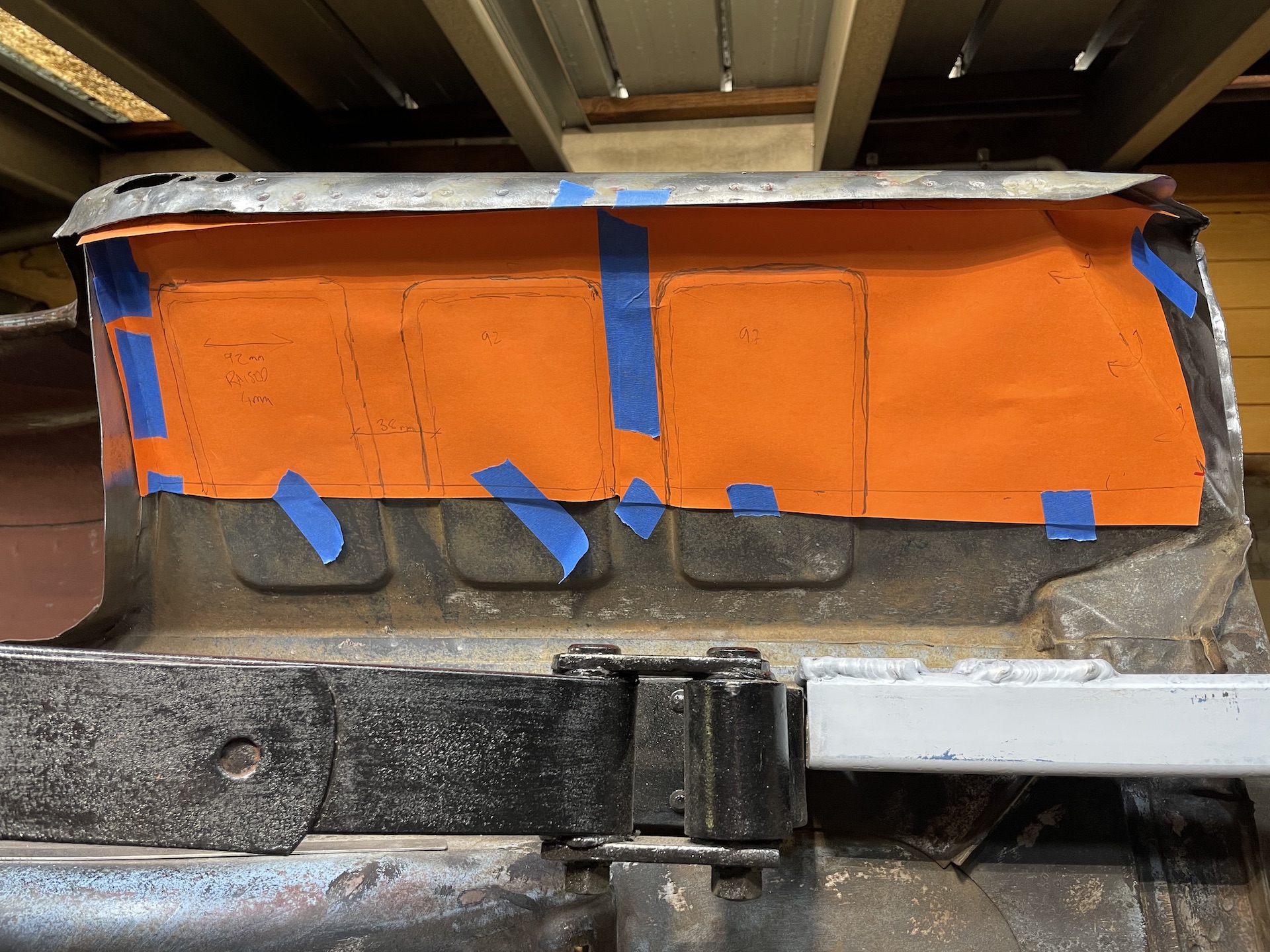

Cut out the offending piece and get the crafty paper into action again. Trace around the shape.

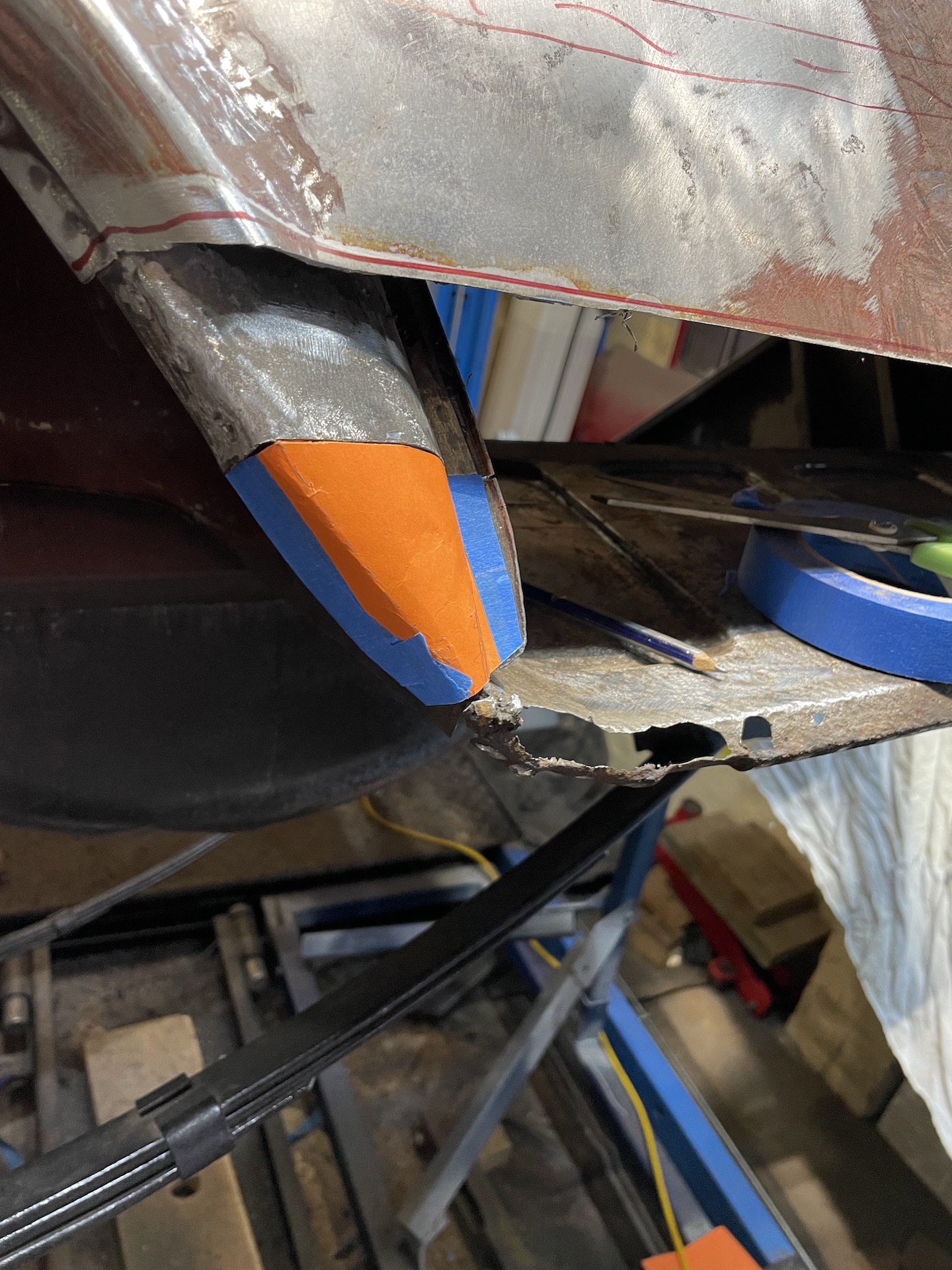

Test fit


Trace onto a piece of leftover floor pan, cut, fold, stretch, shape on my sand bag, fit, refit, bend with fingers, make new soft jaws, fit blah blah......
And an hour later



Prepped it ready for welding next shed time

[Errol62]

Very satisfying innit?


FB ute fixer upper, EK van on rotisserie

[Brett027]

You do very neat work Scott. It's a credit to you.

[In the Shed]

Great work Scott, nice results with some imagination and common shed tools. Love it

Regards
Stephen

[funkyscooter]

Thanks gents. I probably repeat myself a bit here but I do honestly have some 'holy crap that actually worked' moments.I share them to remind me I can do it. And of all my tools that pants leg cable tied and filled with sand is my go to every time.

[funkyscooter]

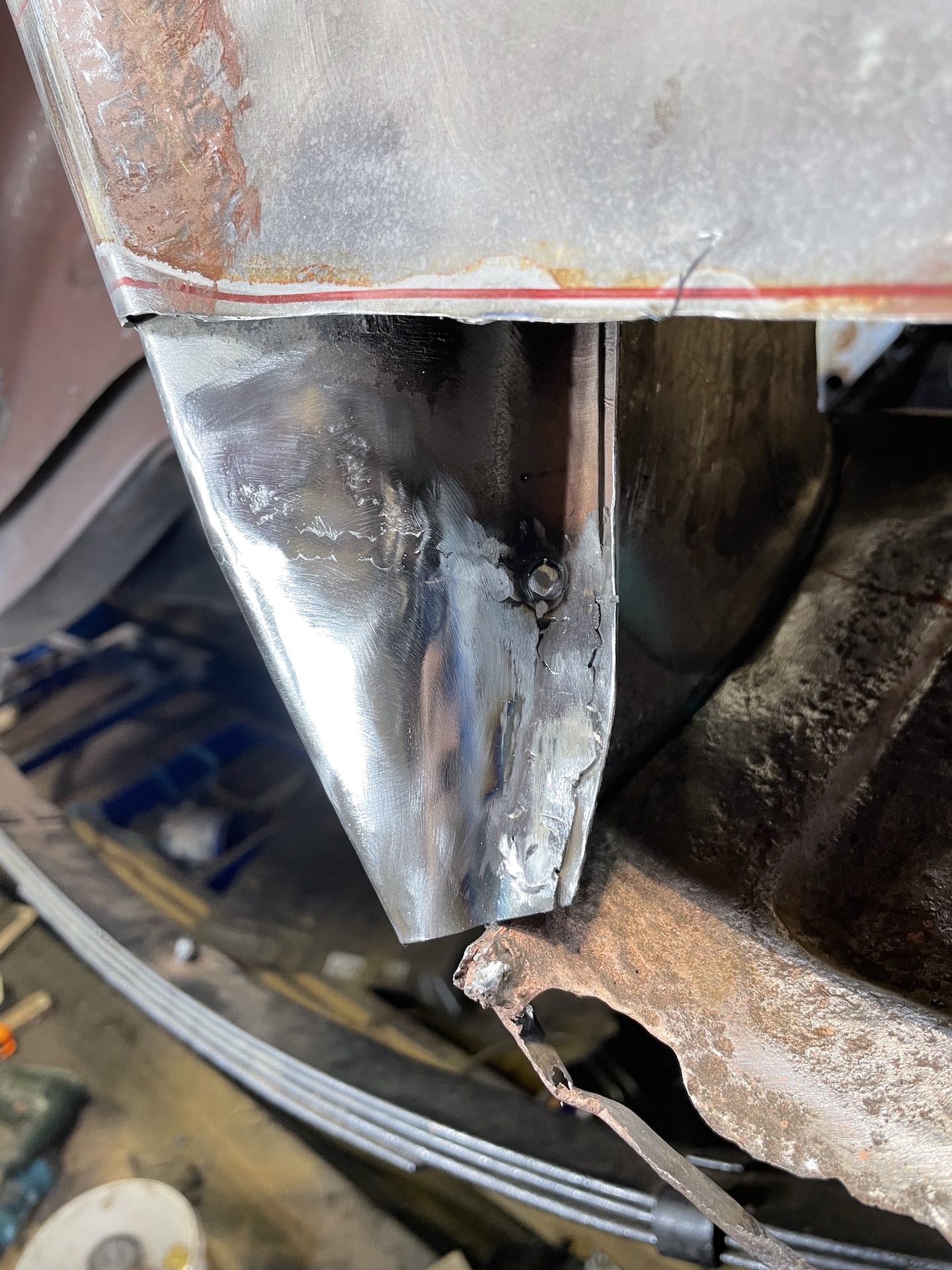

Got the welder into action the other day and finished that little repair off.
Decided to try a new setting on the welder. Turned it up to "2" and set the wire speed to 10. (Was set to 1 with the feed at . Much better penetration. Only blew one hole in it. Had copper behind it which helped a bit but a short burst and then wait for the glow to start to fade before hitting it again seemed to work. Well this time anyway. All the flap disks had a run on this one for a bit of shiny fun.


Quick snap of the other quarter. Straight out of acid, power washer, then coated in Easyphos. No shine for this one.


Now on to the passenger inner quarter. There is a guy on FB selling these and against better logic I decided to have a go. Cue orange paper


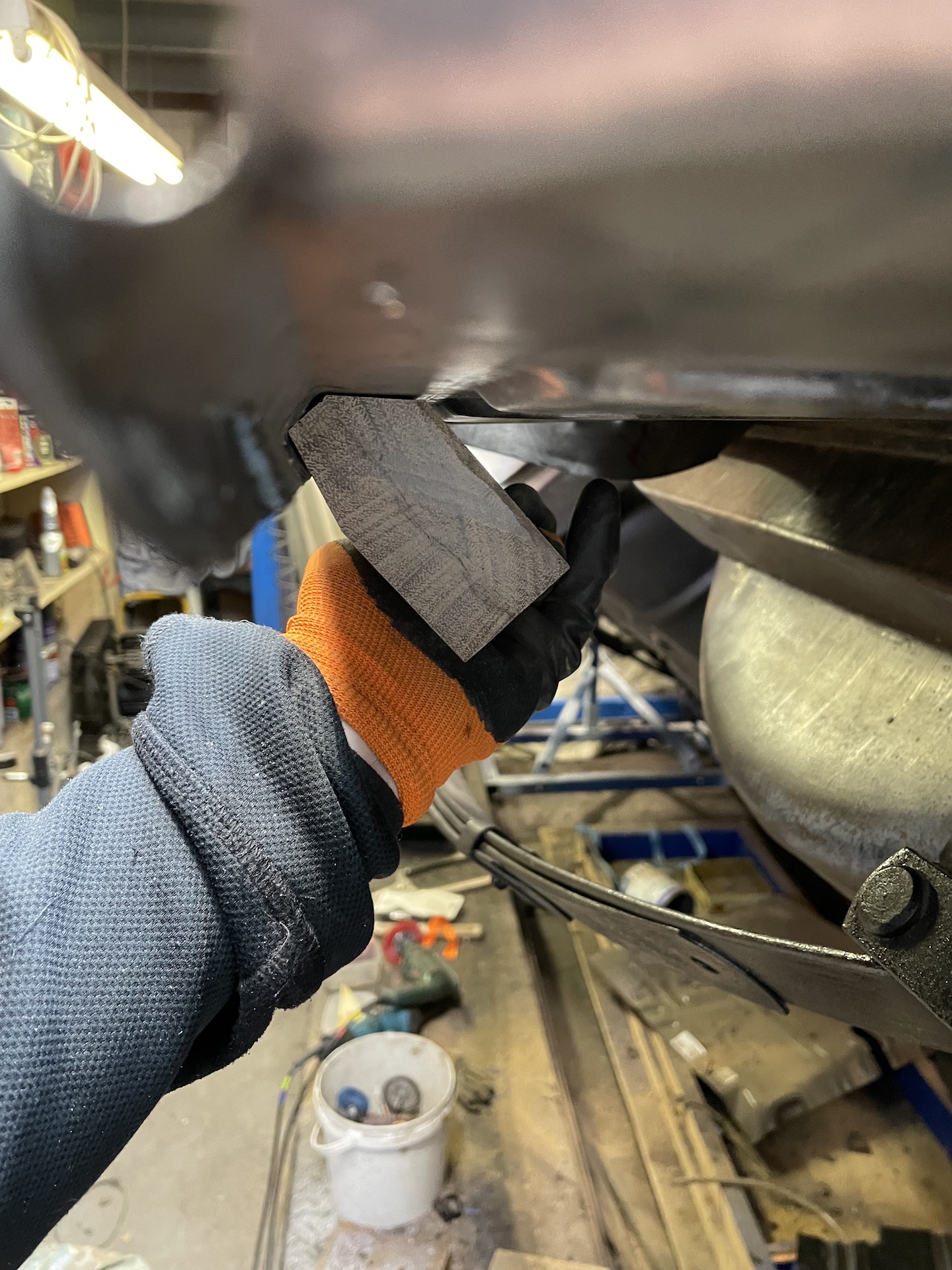

Discovered that some left over decking at 88mm is pretty close here.

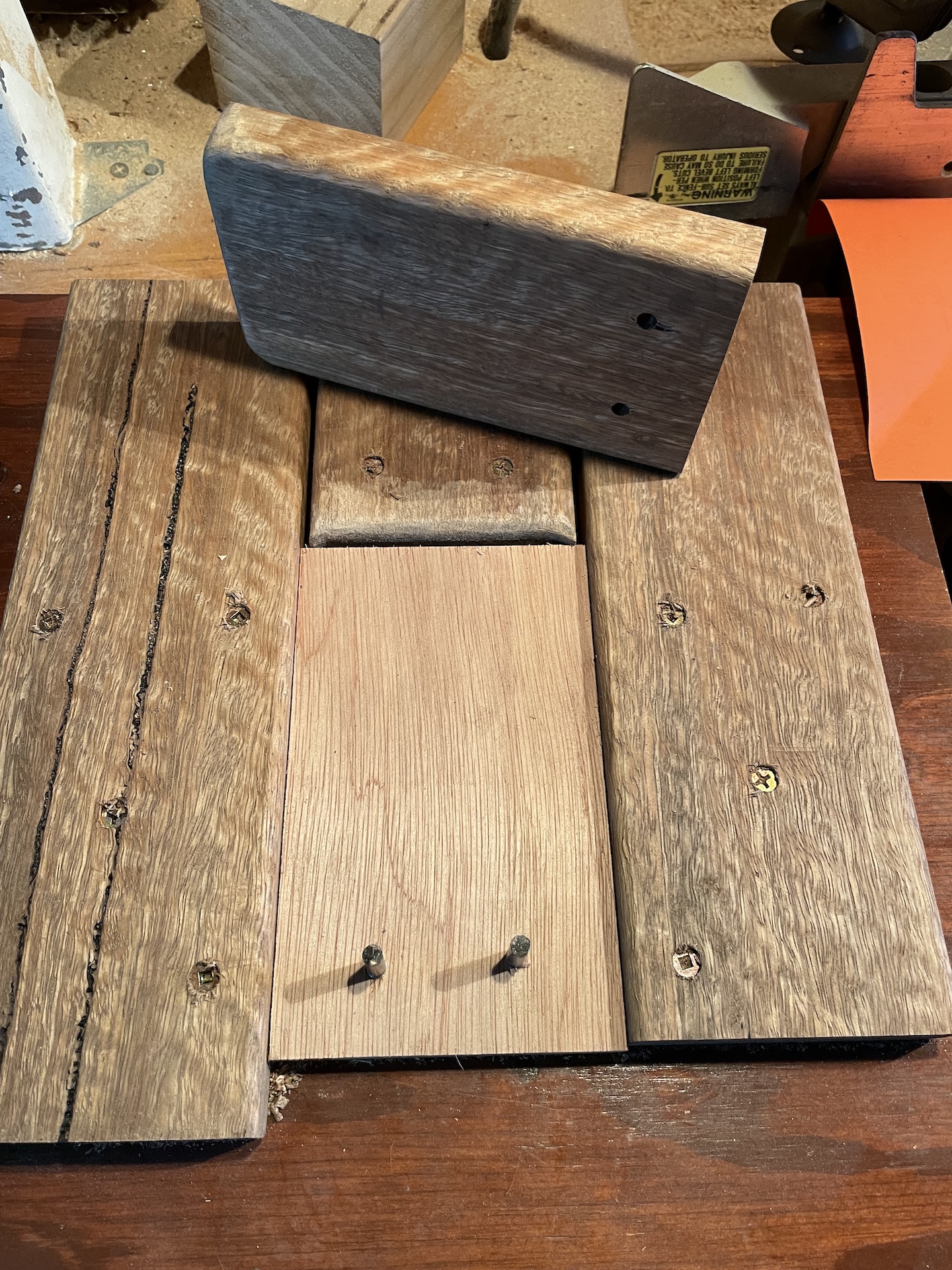

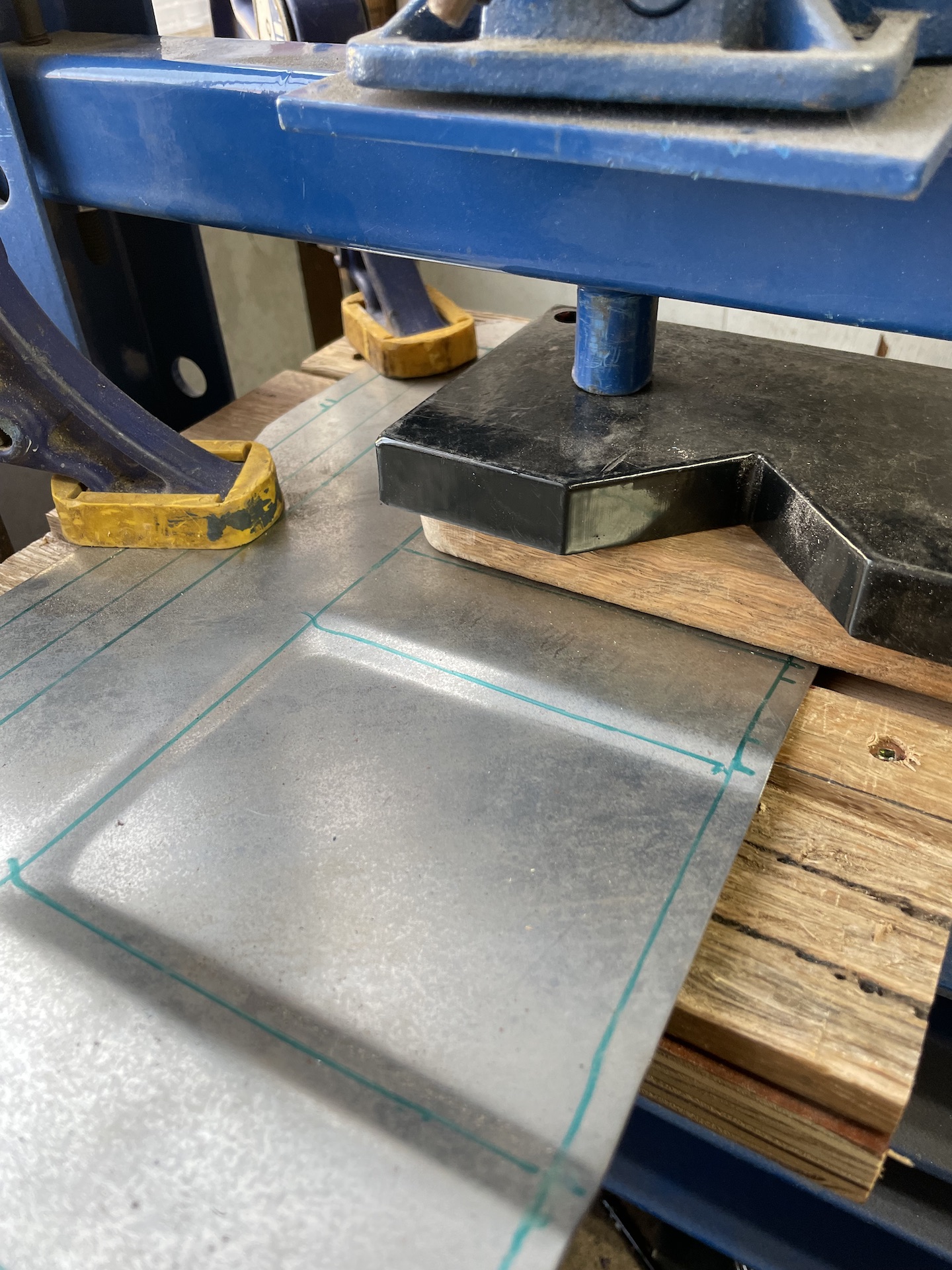

So made up a jig for the press.

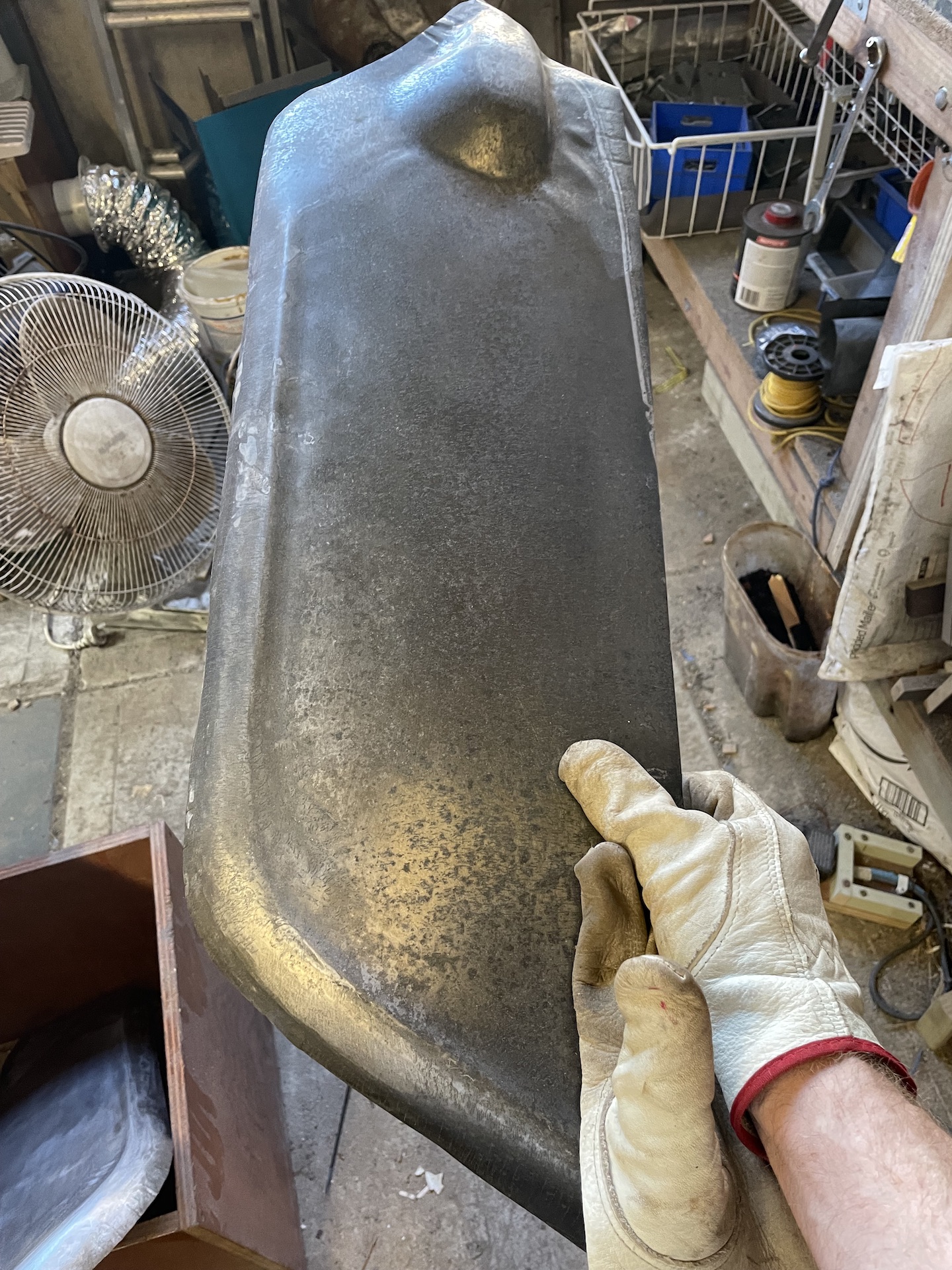

Had to modify it so the pressed metal would fit but you get the idea.


Not sure how close these will get to lining up to the original. Just guessing based on the drawings I mapped out on the sheet. But for where it is, don't think it will matter.


[funkyscooter]

More offcuts to make a jig for the 2 drains that I will fill with deadener and seam sealer so that they are next to useless

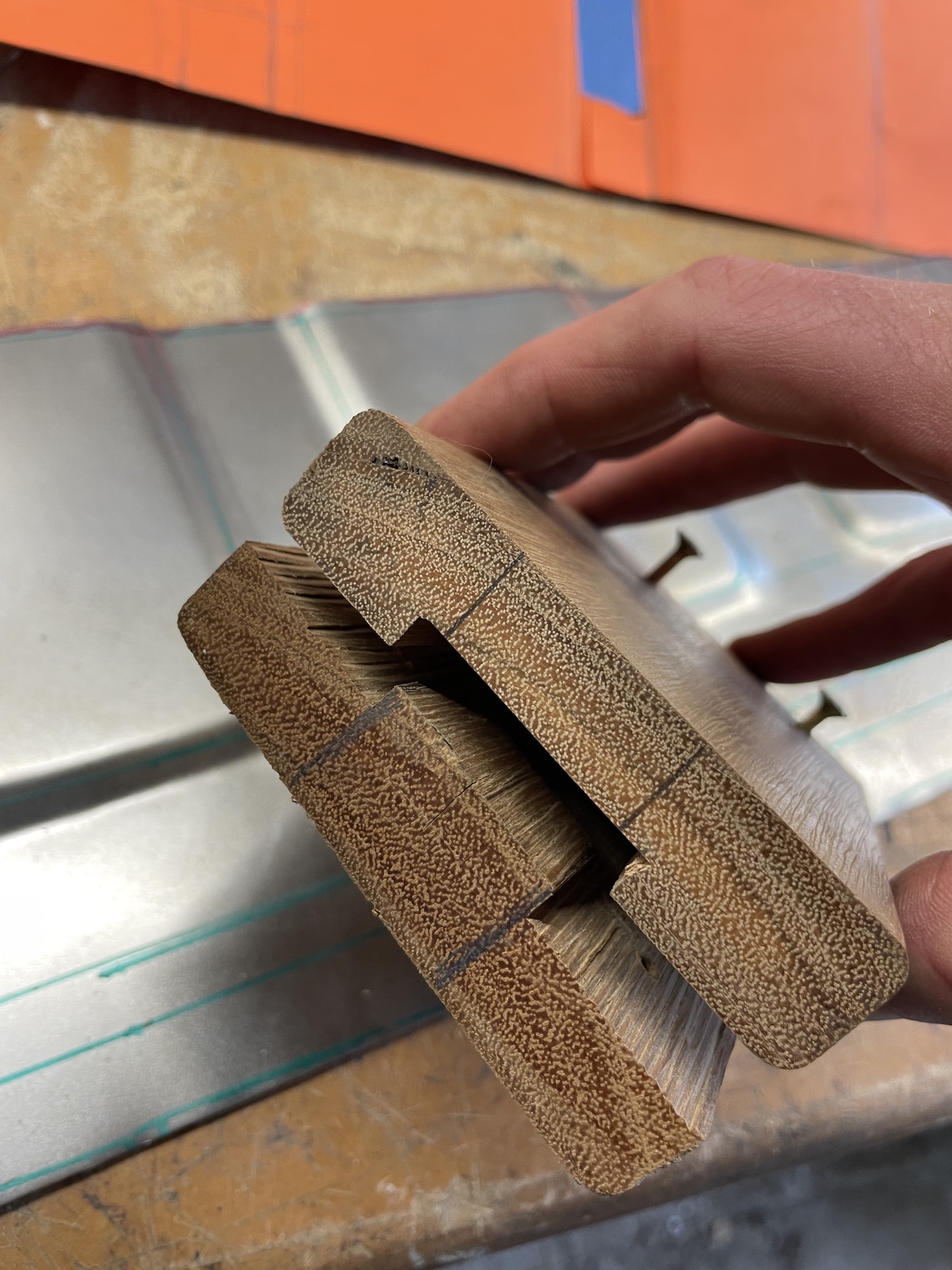

And a couple more bits to make up a guide for forming the double fold that the outer is spot welded to. FYI the angles are 15 and 45 degrees.



Despite attempting to stretch the metal, I was never going to get it as far as I needed so relived it with the cutoff wheel

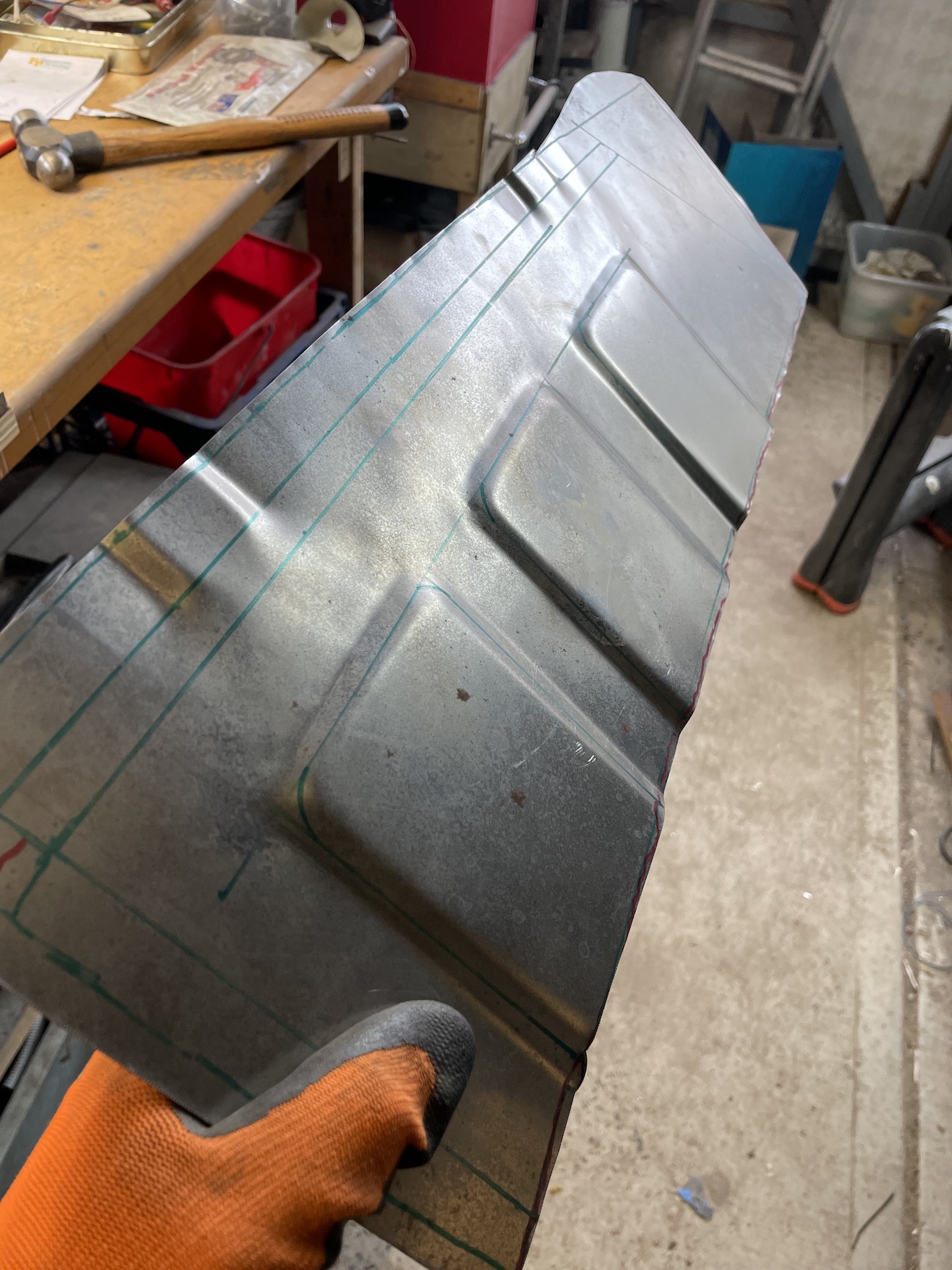

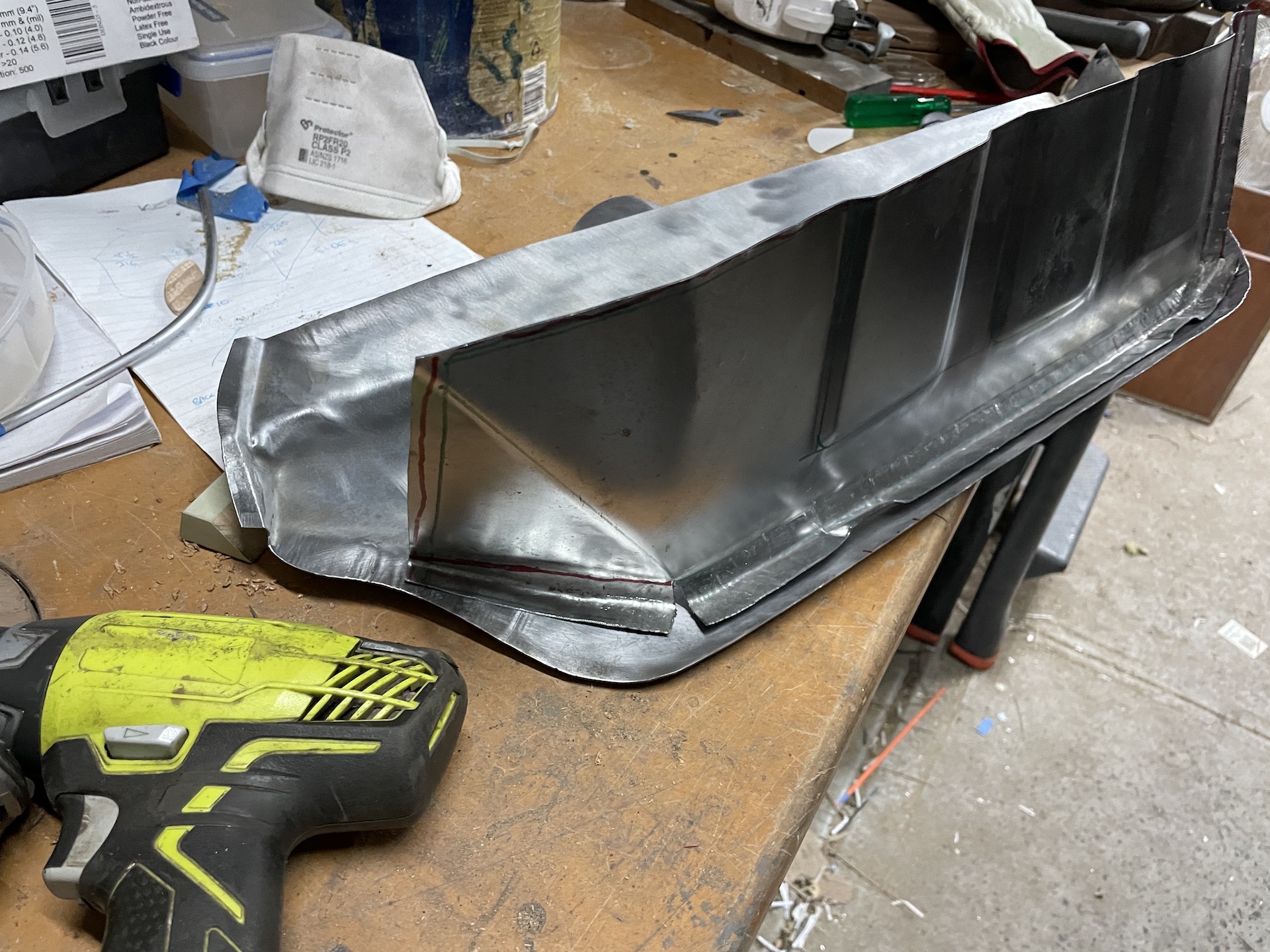

Lot more bending, twisting and head scratching and I have got it to here.

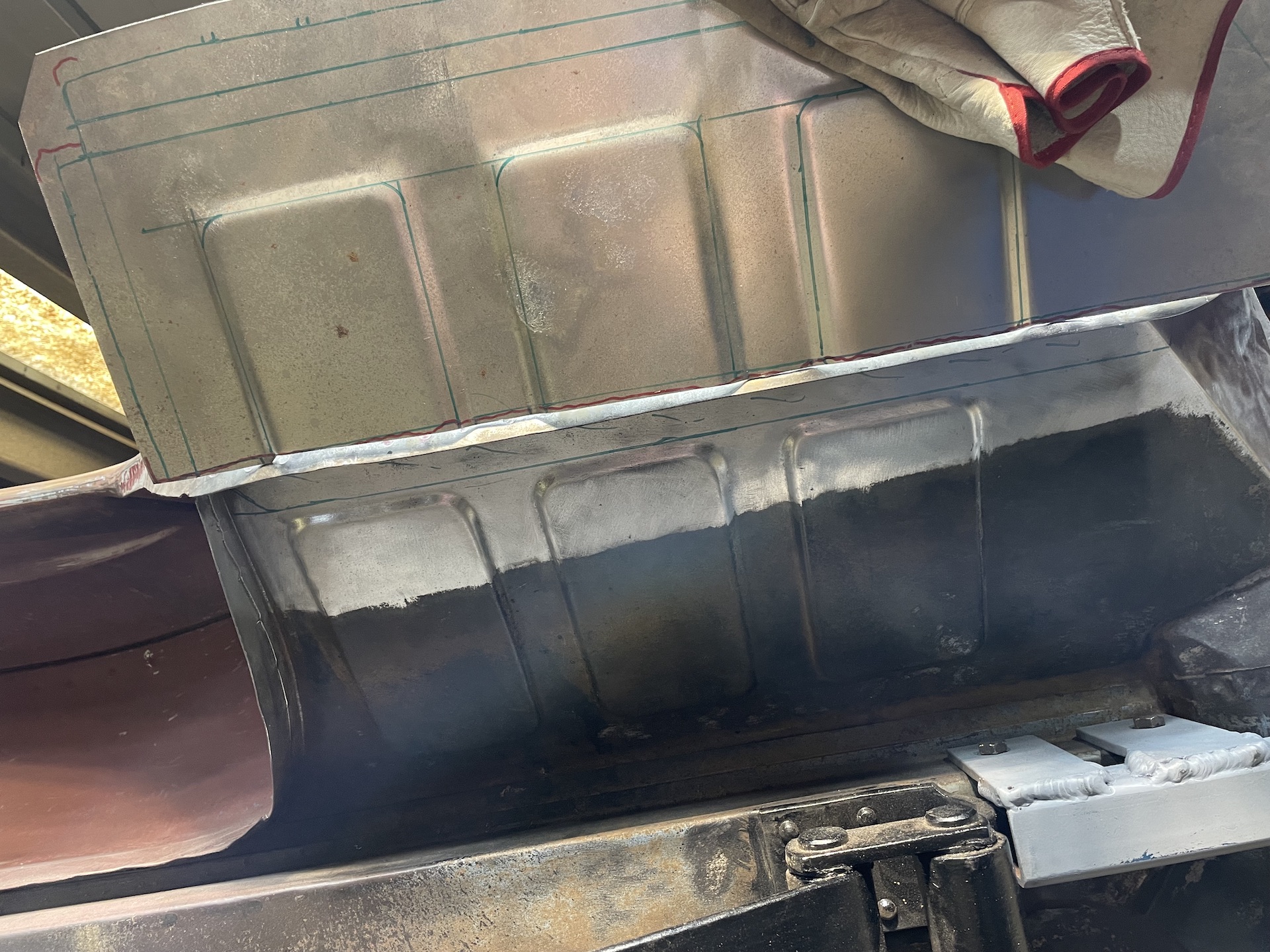

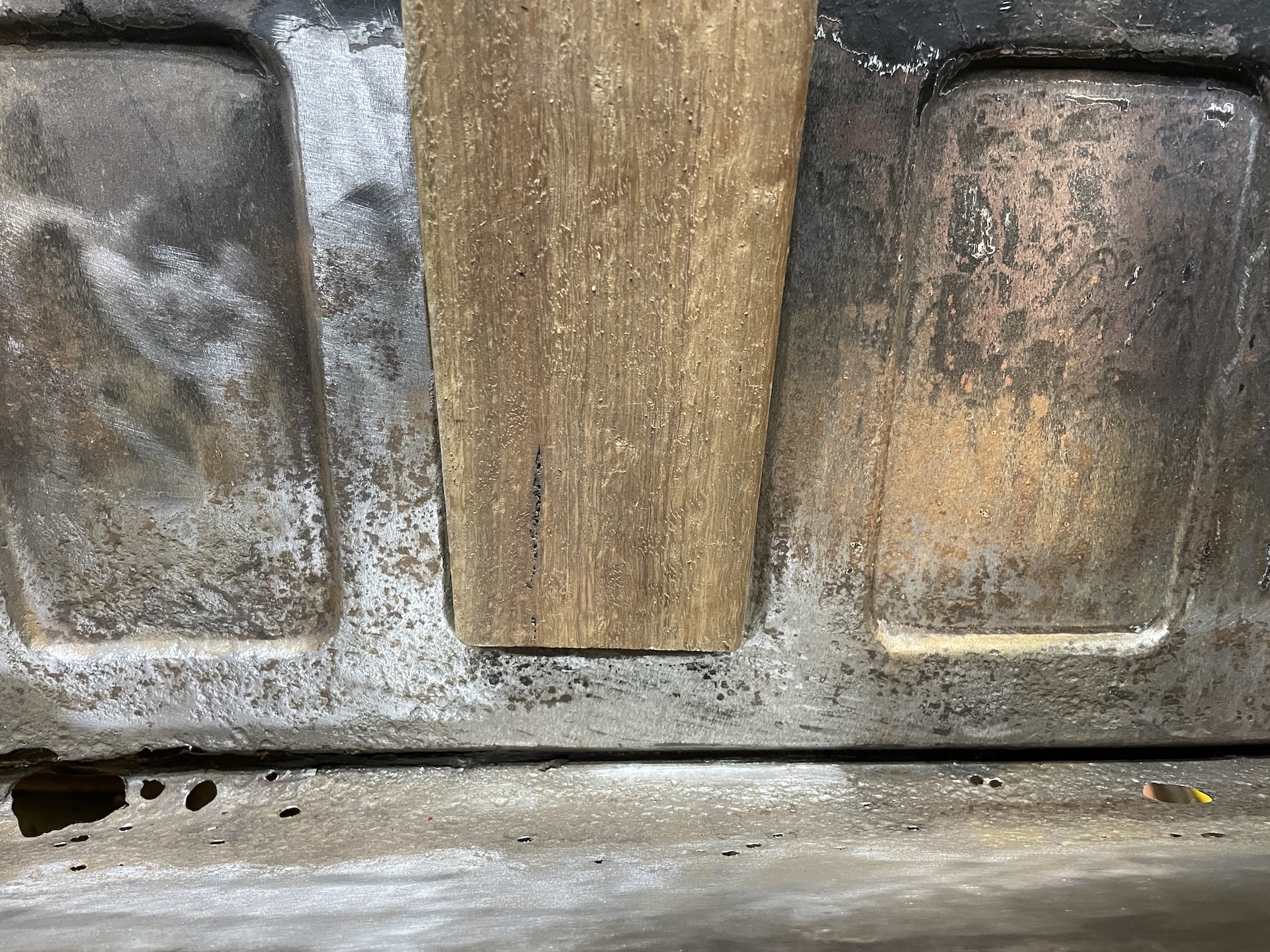

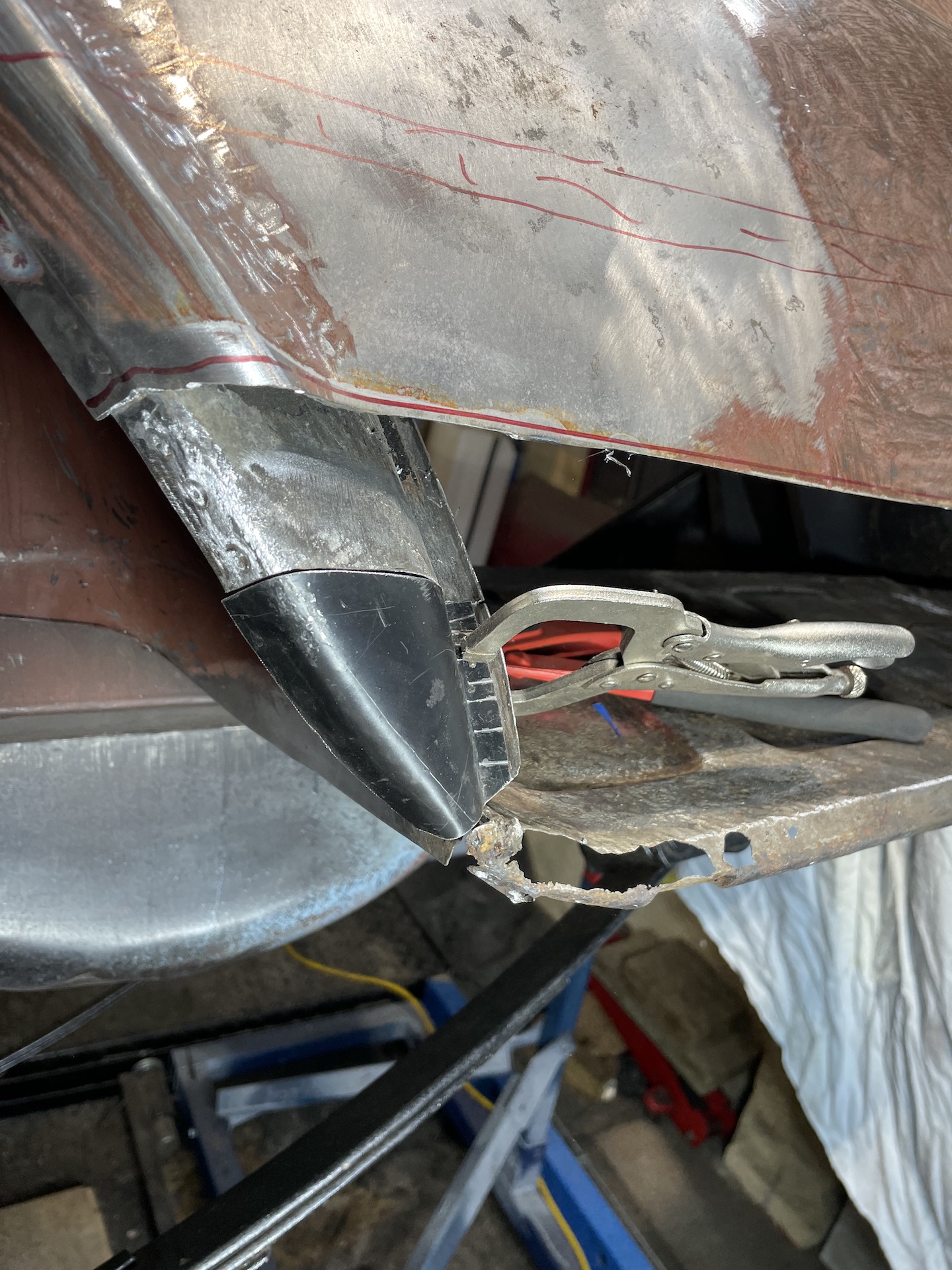

Spent way too much time trying to get the inner to match what is on the car. Then I had a face palm revelation that there is no point as the outer is new and does not fit the current inner anyway.

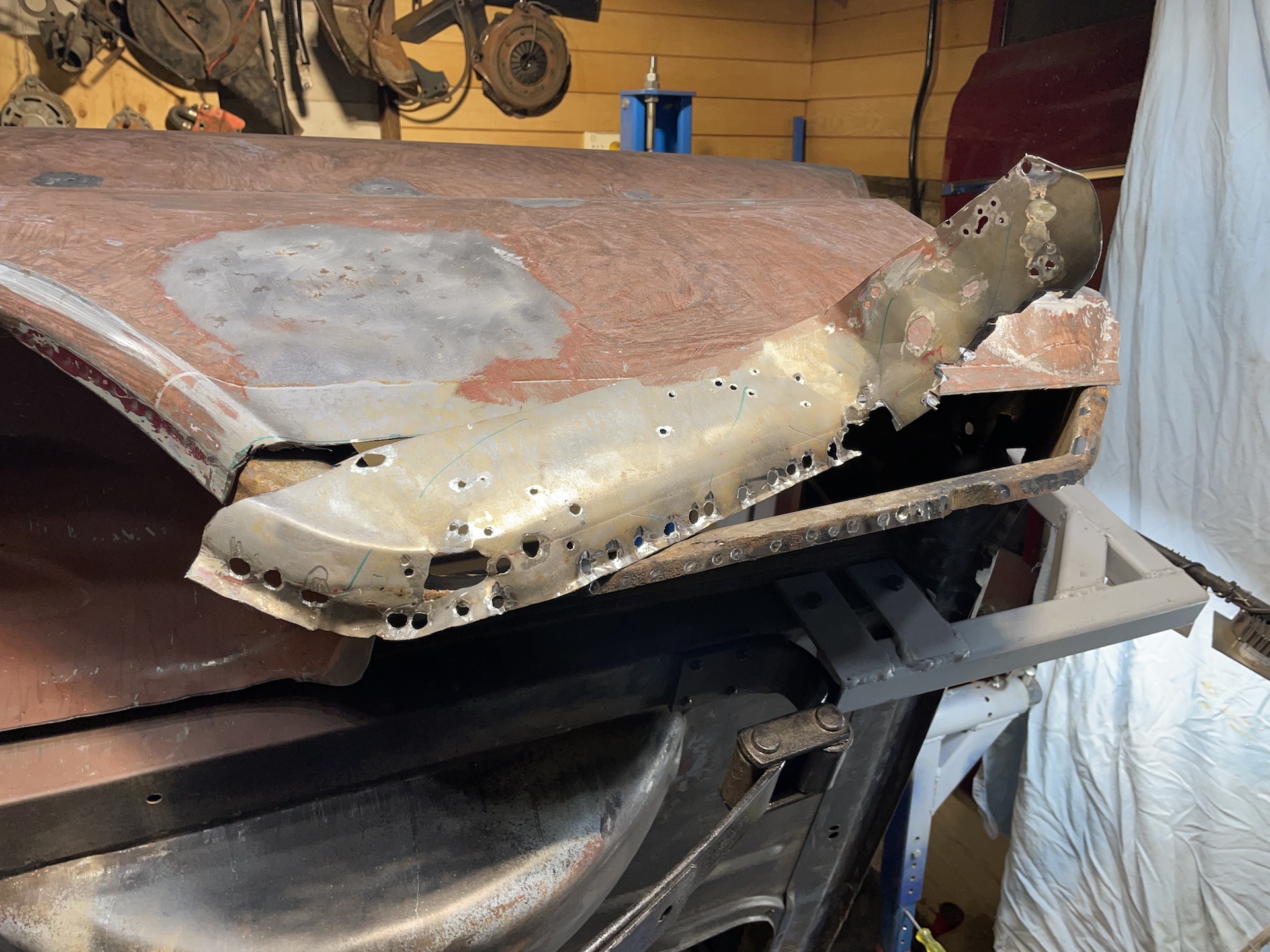

Thinking now is to cut out old inner, fit new outer, then fit the inner to suit. Any misalignment and corrections will then be hidden under the car.
