The Jacksons Holden EK "Cropper Creek" Honey Beige

[(AUST)Mod]

http://www.ebay.com.au/itm/NITTO-Electr ... 3a6ce991e1

[parisian62]

Wow what a transformation Steve. Can you outline the steps you did to do this and the cleaning products you used?

Also I noticed on before pics the radiator hoses had the original clamps but the after pics had new ones? Any reason for not using the original clamps?

Stewart

[Aussie Bob]

Wow what a transformation Steve. Can you outline the steps you did to do this and the cleaning products you used?

Also I noticed on before pics the radiator hoses had the original clamps but the after pics had new ones? Any reason for not using the original clamps?

Stewart

Hi Stewart. Thank you!

Step 1. degrease engine with degreaser.

Step 2. Wash engine bay with soapy hot water.

Step 3. 1600 sandpaper on rust spots (plenty of time and elbow work here as you need to sand the rust only)

Step 4. Kenco "Shift It" (plenty of time and elbow work here as you need toothbrush and a lot of time) We spent two days on this step.

Step 5. Buffing compound by hand gently.

Step 6. Mothers Scratch remover with a lot of hand rubbing.

Step 8. Preserve with WD-40

I removed the wiring carefully, the top radiator and support and horn for better access to front radiator suport side panels.

NOTE ... original Sydney cars have Colour crayon of paint name on right hand side ... be very careful not to wipe of polish this off.

Thank you,

Steve

[parisian62]

Thanks Steve. You musn't have any fingers left! Think I'd better go get some of that Kenco 'Shift It'.

Any reason for not putting the original hose clamps back?

[Aussie Bob]

Hi Stewart .... Wayne and my fingers are stuffed

When we to the Croppa on it first trip since 1971 (the Sawtell Nationals 2011) The top hose was a little soft, so we swapped it out ... clamps and all. It will put the old clips back on ... now that you mention it

Steve

[tm 50]

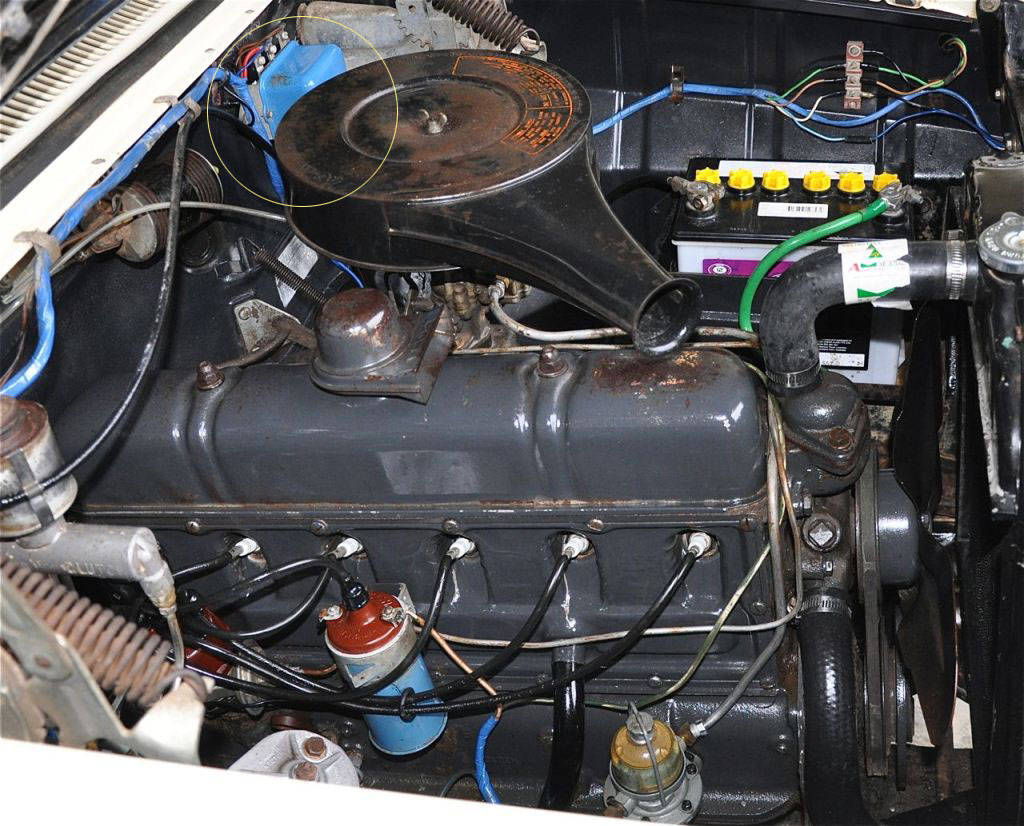

Steve , Im curious , what is the story behind the Blue sheathing/laggging on the wiring loom in the engine bay??
regards Tony

[Aussie Bob]

Hi TM, I haven't researched the blue on the looms on Sydney Standards for quite some time. I think I recall Sunny Tim's EK Standard Cameo having the same blue. That is also a Sydney car.

Steve

[tm 50]

No mine is black, but many utes/vans and standards are blue. Seems to be a 62 thing rather than a 61 thing.
Steve - Keith's Prospect Ivory has blue insulation
Tim

Tim does yours have indicators? wondering if it could be a different loom due to a lot of commercials not having indicators?????

[wot179]

Is that No3 exhaust valve bent or just stuck open?

It looks to have been run stuck open for some time.

Those marks on No2 are definitely curious.

[Blacky]

My 1960 FB ute is Perth assembled , with indicators and it had blue harness tape .............

[Blacky]

Inside Tim.

[samprinci]

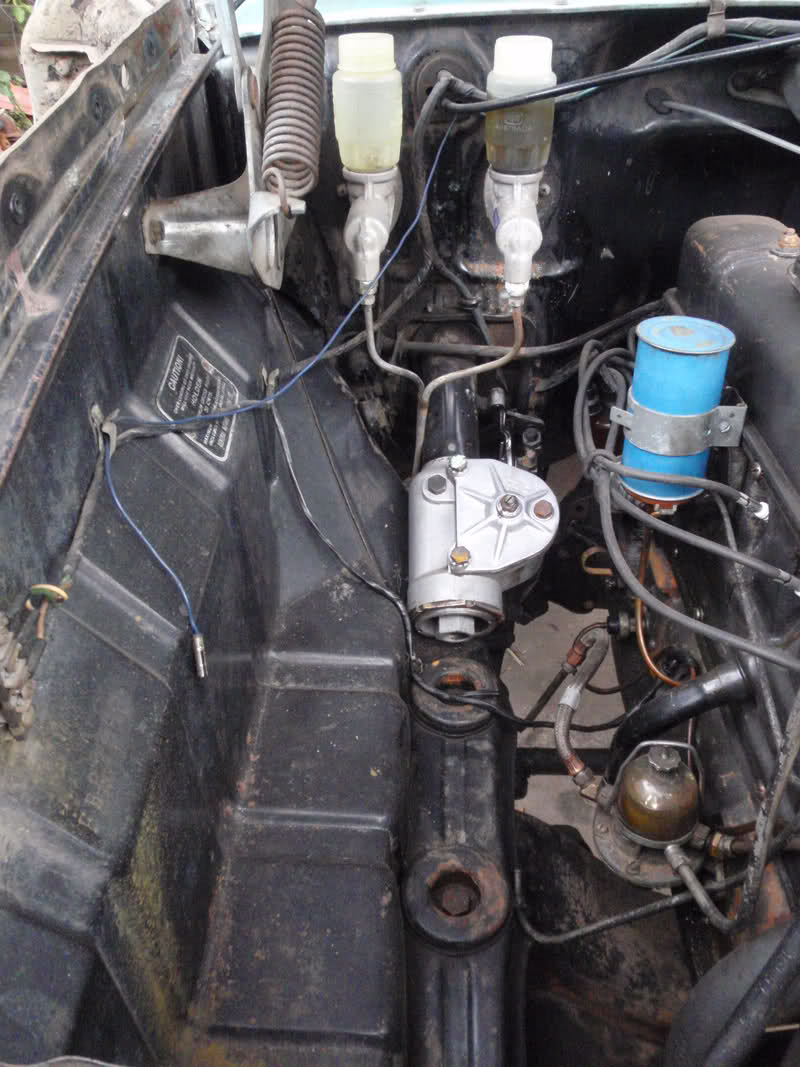

thats some great info guys... thanks for sharing that. Which confirms my conclusion about my ute too. FB which has the black tape & blinkers fitted as an accessory see blue wire (this pix is from the resto)

[samprinci]

heres a question, noticed your (see pix circled) the volt box thingee (sorry forgot the name) its blue. pretty sure my fb is black.
did they change colour ??

[choppedfan]

PS Steve, don't use those crappy SCA batteries they do horrible things to wiring looms

Whats the issue with these batteries???

Mick

[vmx-mxr]

Well it has been over a year since we have done anything to the Cropper Creek ute. Got time to pull the head to free up the valves. Had the factory head gasket and very clean.

Here are some pics.

Steve, from memory this car was missing no 2 plug when I looked at it on the property. What's going on with the top of the piston, it almost looks like a valve has kissed it, although there are two semi circular imprints

Tim / Craig

The 'marks' on #2 are a convergence of camera flash. Look on #1 - it has a slight crescent pattern on it the second piston just has more light bouncing off the cylinder bore. Both are in the 9 0'clock to 12 o'clock position ie hit from the same angle when the flash went off. Easy !!!

Saw the engine bay first hand and it sure is clean as ! Don't know if my FB ute bay is going to come up that clean

Dave Mac
