LS1EK

Post photos of your pride and joy, or updates on your rebuild!

Moderators: reidy, Blacky

Blacky
Posts: 12430
Joined: Tue Jul 20, 2004 8:58 am
State: WA
Location: up in the Perth hills

Re: LS1EK

Post by Blacky »

There are no new ideas anymore - just adaptations of other ideas , or something .....
When you're faced with an unpleasant task that you really don't want to do, sometimes you just have to dig deep down inside and somehow find the patience to wait for someone else to do it for you.


Foundation member #61 of FB/EK Holden club of W.A.
TAZ
Posts: 337
Joined: Wed Sep 23, 2015 9:32 pm
State: TAS
Location: hobart

Re: LS1EK

Post by TAZ »

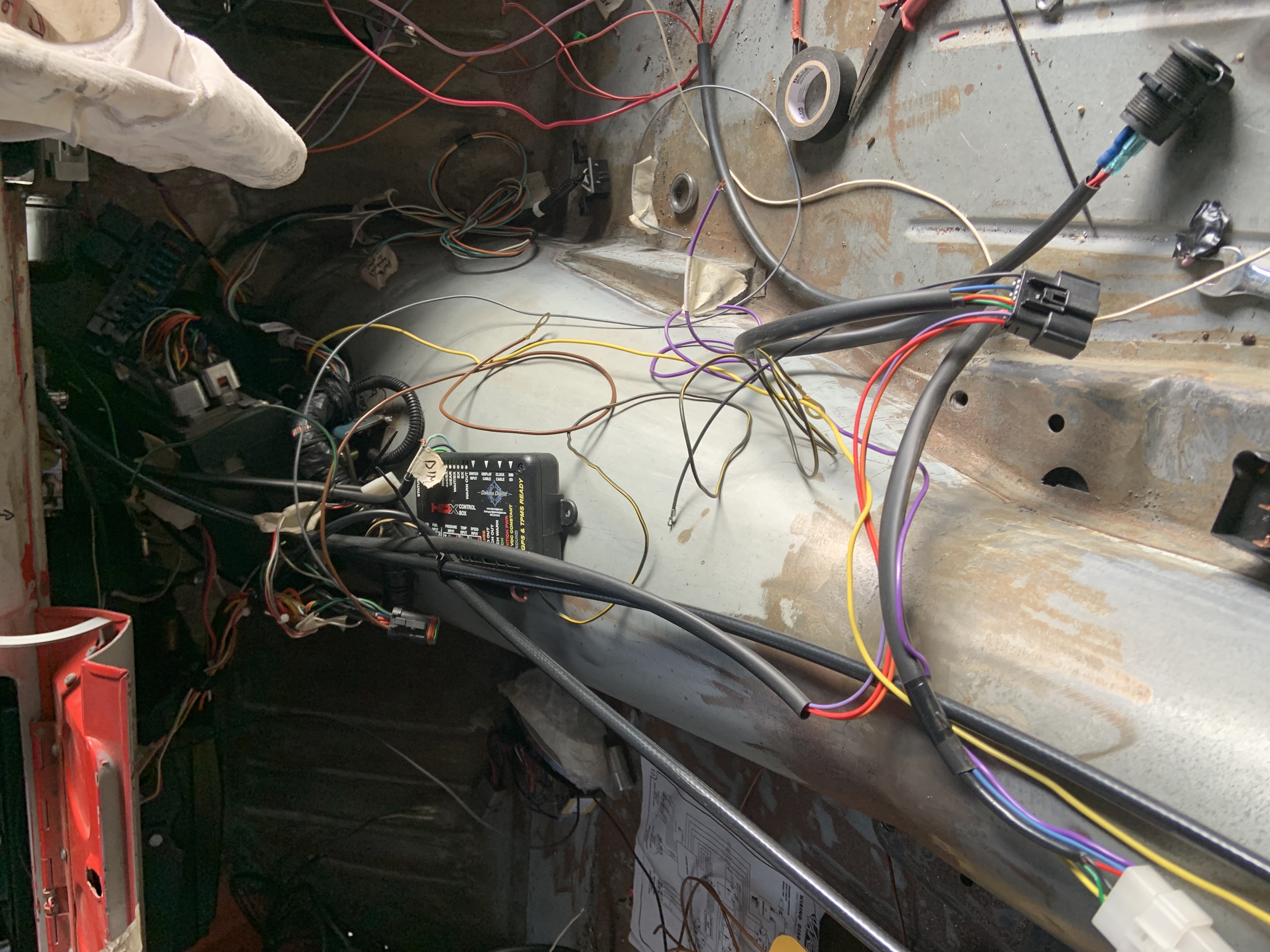

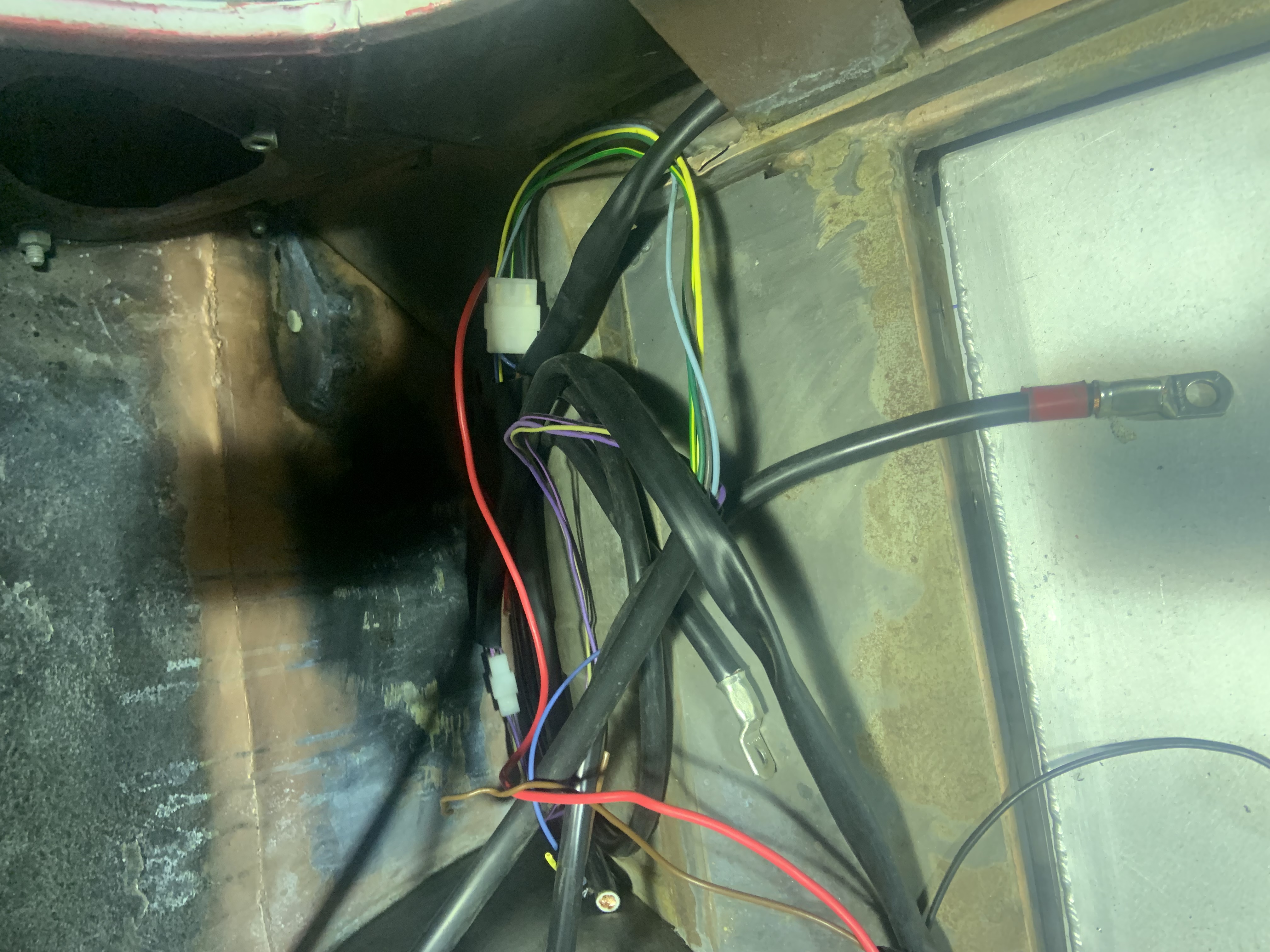

And yet more wires go in.
Attachments
Blacky
Posts: 12430
Joined: Tue Jul 20, 2004 8:58 am
State: WA
Location: up in the Perth hills

Re: LS1EK

Post by Blacky »

Wiring never seems to end does it - I did some more on mine last night, had a night off tonight and played boilermaker instead :crazy: :crazy:
When you're faced with an unpleasant task that you really don't want to do, sometimes you just have to dig deep down inside and somehow find the patience to wait for someone else to do it for you.


Foundation member #61 of FB/EK Holden club of W.A.
melly
Posts: 86
Joined: Mon Jan 10, 2022 11:35 pm
State: WA
Location: Ocean Reef

Re: LS1EK

Post by melly »

Looking very professional Taz, nice job- you're obviously using new aftermarket terminations with fancy new switches etc is that the plan right way thru the re-wire??... can I ask what you guys have been doing with original harness terminations like lamp holders and switches i.e. if you want to run a new harness do/ can do you re-use them??
Blacky it looks like you've been splicing them original bits in to terminate new sections of your loom on the Rattler?

cheers, melly
User avatar
Harv
Posts: 5116
Joined: Mon Oct 08, 2007 2:00 pm
State: NSW
Location: Sydney, Australia

Re: LS1EK

Post by Harv »

Check the harness carefully for previous owner bodges. Replace those.

Reuse what you can. The factory wiring quality is pretty good other than normal wear and tear.

Splice in new stuff. Buy a quality crimper - I bought a name-brand ratchet crimper, and learned the hard way that they look good but are not (... had to recrimp all my harness with a pair of multigrips after it was in place). I learned some from here: https://www.jalopyjournal.com/forum/thr ... l.1127519/ and switched over to a Thomas and Betts crimper, and use uninsulated terminals. Crimp, then heat shrink. No mashing flat the 'orrible red and blue plastic ones. The quality of the connection is significantly better.

Cheers,
Harv
327 Chev EK wagon, original EK ute for Number 1 Daughter, an FB sedan meth monster project and a BB/MD grey motored FED.
Blacky
Posts: 12430
Joined: Tue Jul 20, 2004 8:58 am
State: WA
Location: up in the Perth hills

Re: LS1EK

Post by Blacky »

Melly, yeah I used the dash wiring and not a lot else , all th erest of it barring the wiring to the taillights has been replaced.

Harv, I have a set of $800 crimpers for insulated terminals, have had them since I was an apprentice about 95821 years ago - they do a beautiful job .
When you're faced with an unpleasant task that you really don't want to do, sometimes you just have to dig deep down inside and somehow find the patience to wait for someone else to do it for you.


Foundation member #61 of FB/EK Holden club of W.A.
User avatar
FireKraka
Posts: 2275
Joined: Fri Jan 24, 2014 11:12 am
State: WA
Location: Serpentine, WA

Re: LS1EK

Post by FireKraka »

Hi Melly as Harv said check your harness out fully, if your harness is really trash contact Vintage Wiring in Melbourne not cheap and if you need it right now you would need patience but very good quality I believe.
Member of WA FB/EK Car Club
Frankenstein EK V6 Ute
FB Station Wagon Project
1950's Commer Light Truck (2.5 Ton)
TAZ
Posts: 337
Joined: Wed Sep 23, 2015 9:32 pm
State: TAS
Location: hobart

Re: LS1EK

Post by TAZ »

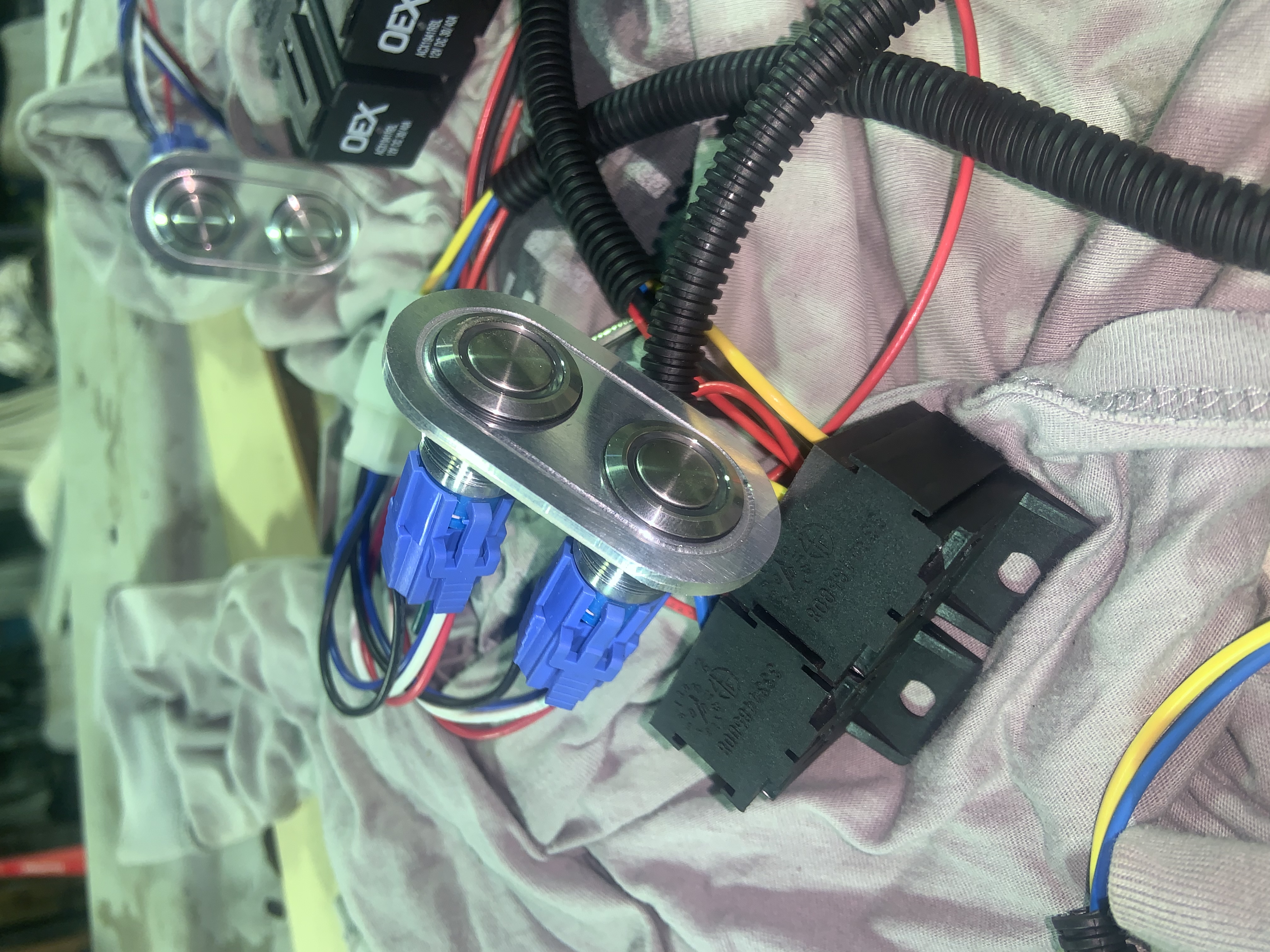

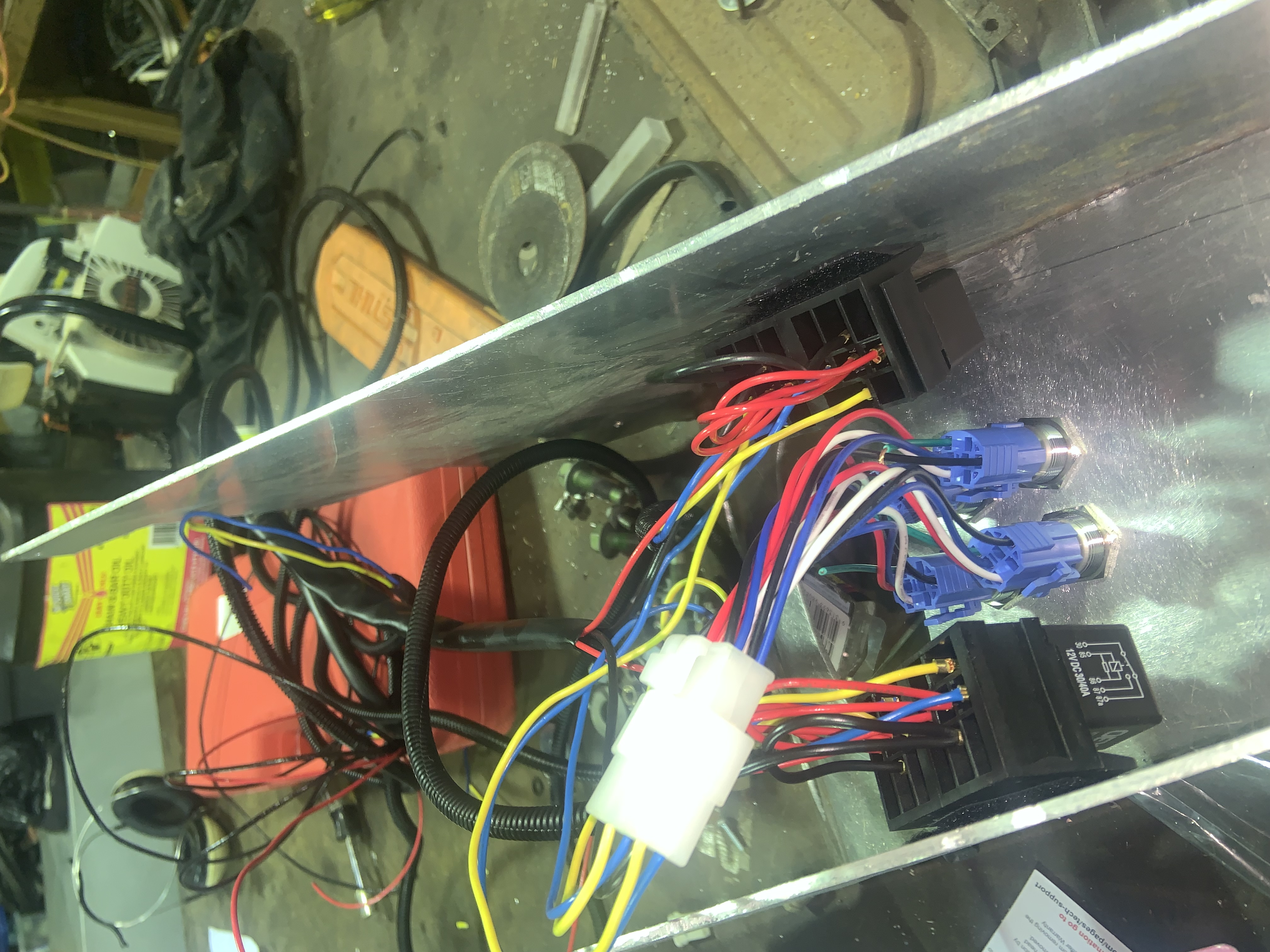

Bloody hell, my mate said why I am away can you start tidying up the wires. 🫣 this has taken me 8 hours to untangle his spaghetti 😝😝.
Attachments
Blacky
Posts: 12430
Joined: Tue Jul 20, 2004 8:58 am
State: WA
Location: up in the Perth hills

Re: LS1EK

Post by Blacky »

Oh criminy, what a bloody mess ..... :shock:
When you're faced with an unpleasant task that you really don't want to do, sometimes you just have to dig deep down inside and somehow find the patience to wait for someone else to do it for you.


Foundation member #61 of FB/EK Holden club of W.A.
TAZ
Posts: 337
Joined: Wed Sep 23, 2015 9:32 pm
State: TAS
Location: hobart

Re: LS1EK

Post by TAZ »

Blacky wrote: Sun Mar 26, 2023 7:26 pm Oh criminy, what a bloody mess ..... :shock:
Bloody sparky’s hey! Always leaving their mess for others to clean up 😝😝
Blacky
Posts: 12430
Joined: Tue Jul 20, 2004 8:58 am
State: WA
Location: up in the Perth hills

Re: LS1EK

Post by Blacky »

I kept mine loomed up the whole time , once it is a birds nest like that its waaaayy more work to tidy up
When you're faced with an unpleasant task that you really don't want to do, sometimes you just have to dig deep down inside and somehow find the patience to wait for someone else to do it for you.


Foundation member #61 of FB/EK Holden club of W.A.
User avatar
FireKraka
Posts: 2275
Joined: Fri Jan 24, 2014 11:12 am
State: WA
Location: Serpentine, WA

Re: LS1EK

Post by FireKraka »

Damn Taz I thought mine was a mess when I was building Frank
Member of WA FB/EK Car Club
Frankenstein EK V6 Ute
FB Station Wagon Project
1950's Commer Light Truck (2.5 Ton)
User avatar
Errol62
Posts: 9902
Joined: Sat Dec 06, 2014 2:44 pm
State: SA
Location: Adelaide

Re: LS1EK

Post by Errol62 »

FireKraka wrote:Hi Melly as Harv said check your harness out fully, if your harness is really trash contact Vintage Wiring in Melbourne not cheap and if you need it right now you would need patience but very good quality I believe.
Wouldn't buy one again.

Sent from my SM-G781B using Tapatalk

getting my FB ute on the road
EK van on rotisserie
melly
Posts: 86
Joined: Mon Jan 10, 2022 11:35 pm
State: WA
Location: Ocean Reef

Re: LS1EK

Post by melly »

Bloody hell Taz the work and manhours gone into that wiring job is gunna make the final product even more impressive... thanks for the feedback fellas- there was some handy tips in that article Harv and I'm not going to need anything in a hurry Neil so reckon I'll have the time to leverage off Blacky's expertise (after I check with him that its OK of course :ebiggrin: ). I'd like to modify to hide as much as i can. Taz is inspiring me.

cheers, melly
TAZ
Posts: 337
Joined: Wed Sep 23, 2015 9:32 pm
State: TAS
Location: hobart

Re: LS1EK

Post by TAZ »

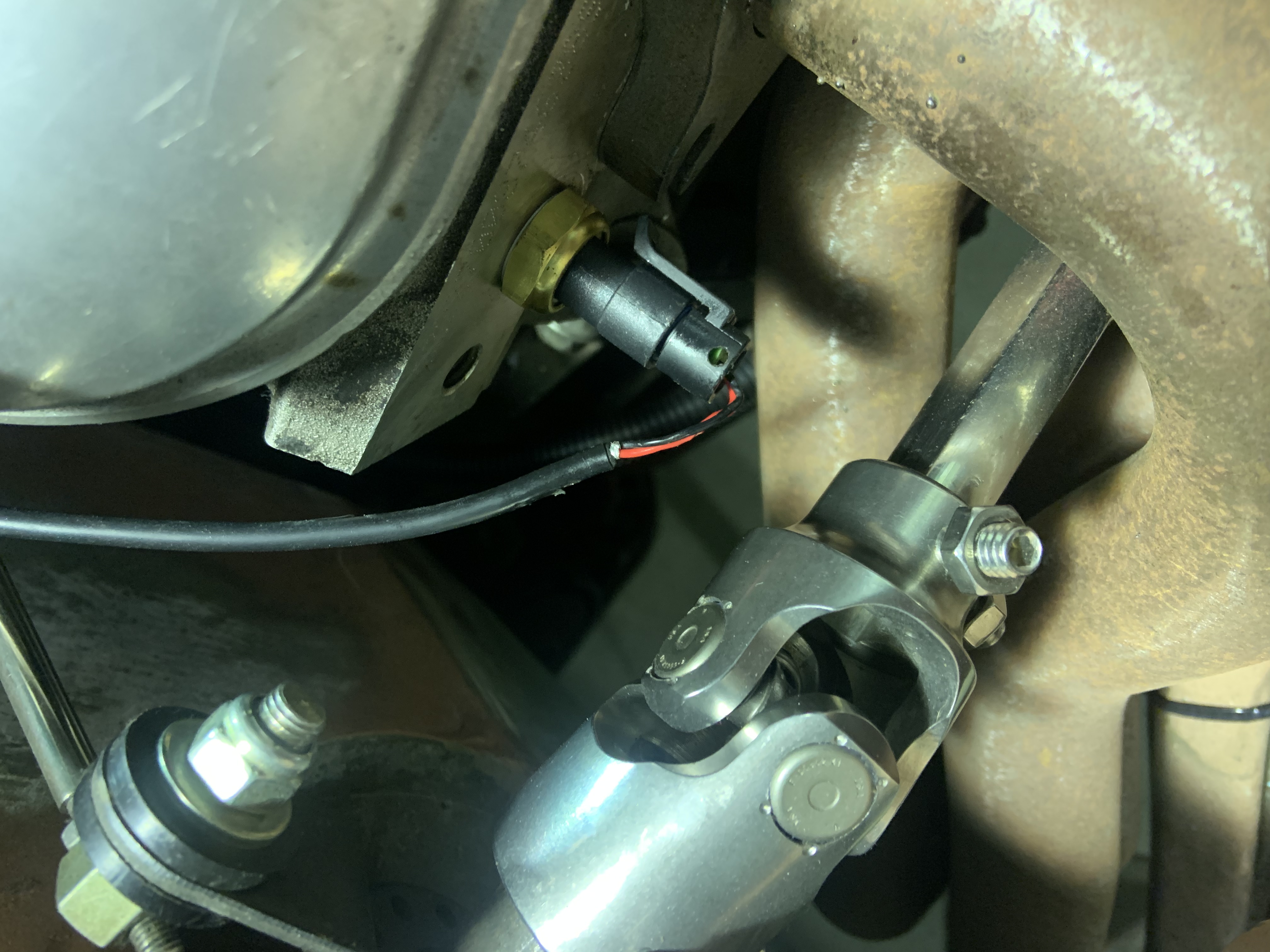

Not much time to tidy up the wiring lately but I did get a small win. The temp sender that was supplied for the gauges used a reducer which placed it only a few mm off the steering joint.
Did some googling and found a supplier who could supply one with the correct thread. Arrived today and fitted tonight, no more clearance issues.
A small win but I will take it.
Attachments
Post Reply
