Project 2.

Post photos of your pride and joy, or updates on your rebuild!

Moderators: reidy, Blacky

Brett027
Posts: 2089
Joined: Thu Apr 18, 2019 4:14 am
State: NSW

Re: Project 2.

Post by Brett027 »

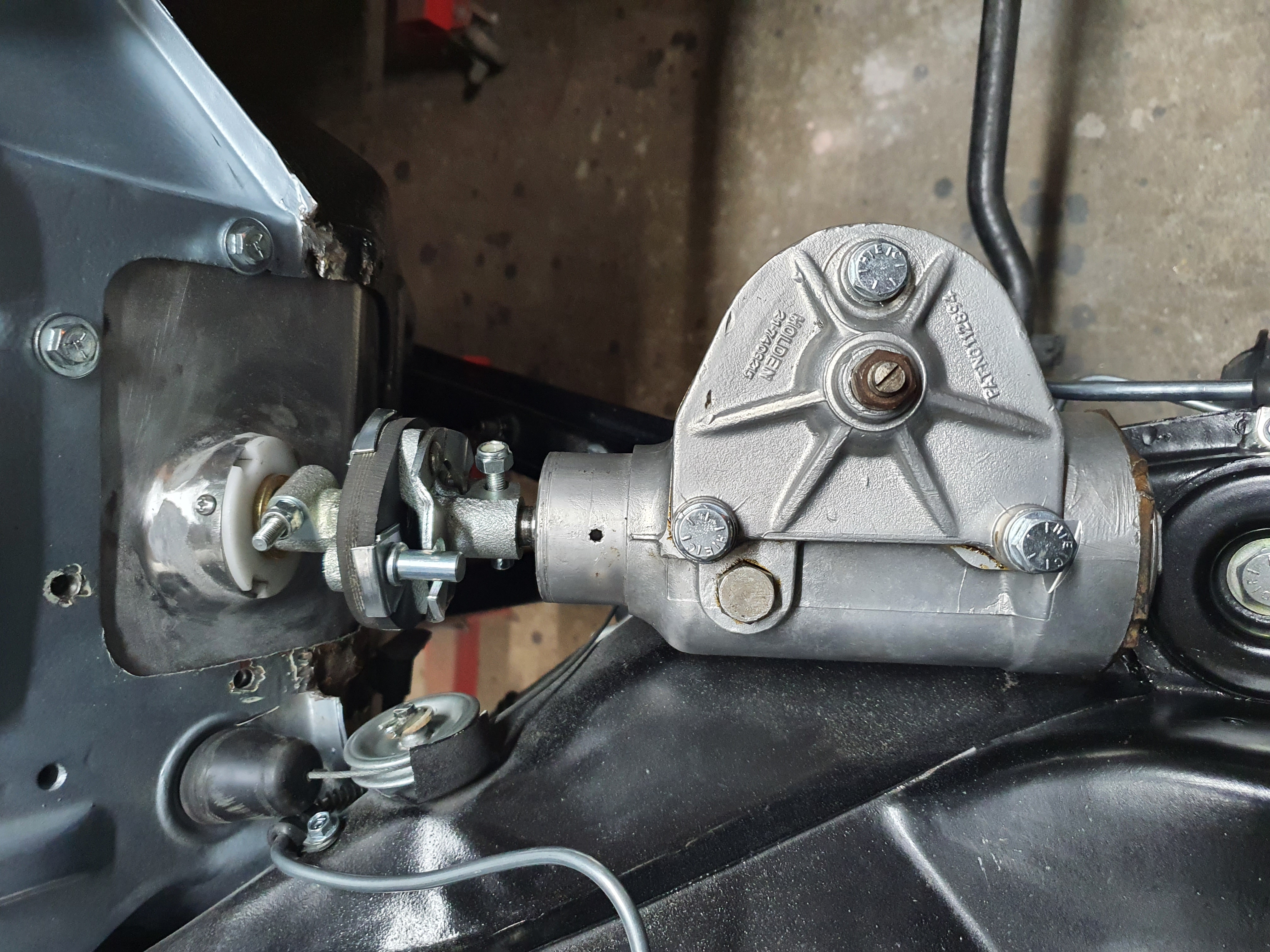

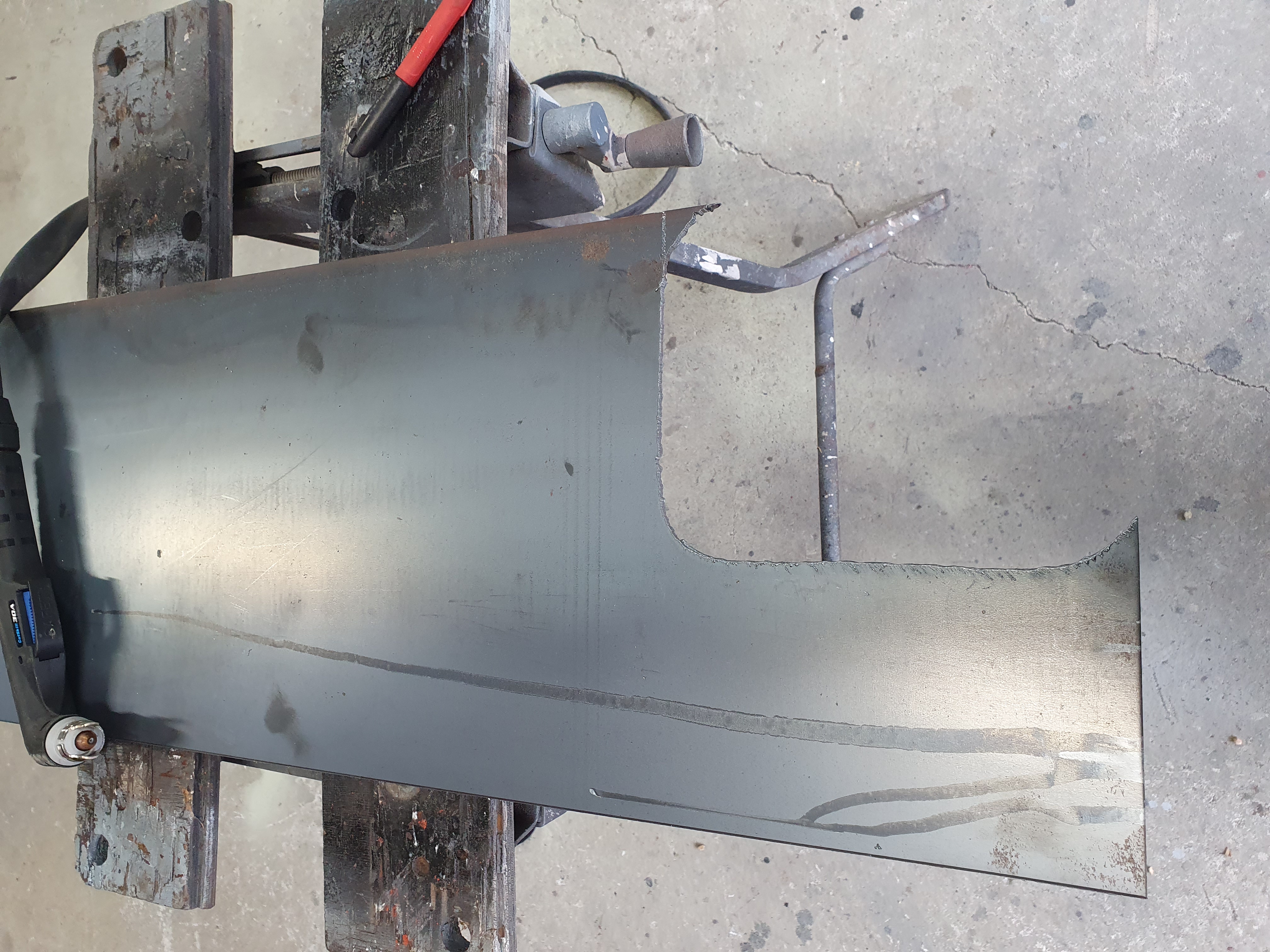

A bit more steering progress. Cut and bent the mounting plate for the firewall and test fitted it. Engineer wanted 3mm. I will get laser cut mob to cut me a 20mm wide 3mm thick cover strip/plate to put on the firewall front and then tack the nuts to the inner plate to make it easy to fix. Column will be welded to the plate.
I have decided to go with the torrie ignition and indicator set-up and see how it goes. It would not be difficult to install the EK bearing housing and honey pot if I dont like the look of it.

I also decided this morning that Project 3 (black ute) will be an electric car. Will talk to engineer about that when he's next here.
Attachments
Dummy column
Dummy column
Sucker for a rusty bomb
User avatar
Errol62
Posts: 8653
Joined: Sat Dec 06, 2014 2:44 pm
State: SA
Location: Adelaide

Re: Project 2.

Post by Errol62 »

Obvius question, will it come out esy enough?

Sent from my SM-G781B using Tapatalk

getting my FB ute on the road
EK van on rotisserie
Brett027
Posts: 2089
Joined: Thu Apr 18, 2019 4:14 am
State: NSW

Re: Project 2.

Post by Brett027 »

Yeah easy peasy. Column will come out from inside, seperate to box. Box can be unbolted seperate from column. So muuuuch easier than standard set up. Maybe nuts on outside plate to make it just like old one.
Sucker for a rusty bomb
User avatar
Harv
Posts: 4648
Joined: Mon Oct 08, 2007 2:00 pm
State: NSW
Location: Sydney, Australia

Re: Project 2.

Post by Harv »

Brett027 wrote: Sun Jul 31, 2022 3:39 pmI also decided this morning that Project 3 (black ute) will be an electric car. Will talk to engineer about that when he's next here.
Please tell me you're thinking of transplanting something out of a high-end Tesla (600-odd horse) and not a Prius (70 ponies). You distract the hipster, and I'll unbolt his high-zoot motor 8) :lol:

Cheers,
Harv
327 Chev EK wagon, original EK ute for Number 1 Daughter, an FB sedan meth monster project and a grey motored FED.
Brett027
Posts: 2089
Joined: Thu Apr 18, 2019 4:14 am
State: NSW

Re: Project 2.

Post by Brett027 »

Something in-between I think Harv. 600 hp might test the friendship with both my cheque book and my engineer😁. A ute seems a good candidate for such shenanigans.
Sucker for a rusty bomb
User avatar
Errol62
Posts: 8653
Joined: Sat Dec 06, 2014 2:44 pm
State: SA
Location: Adelaide

Re: Project 2.

Post by Errol62 »

You can buy a twin hub motor rear axle in the states. Bolt in replacement more or less. Replace the rest of the driveline with batteries, distributed to optimise handling. No tailshaft, a cable instead.

Sent from my SM-G781B using Tapatalk

getting my FB ute on the road
EK van on rotisserie
User avatar
funkyscooter
Posts: 394
Joined: Wed Aug 16, 2017 8:12 am
State: NSW
Location: Sydney

Re: Project 2.

Post by funkyscooter »

Ohh look forward to an electric build. Like the idea of motors on the rear axle - but like the idea more of retaining the gearbox so you still have to 'drive' it. There are kits for VW Beetle/Ghia/Bus which bolt onto the gearbox which is converted to 2 speed. The kit has everything you need - except the motor and the battery :lol:
Scott
(Not so rusty) Ol' Rusty - FB/EK Sedan
Brett027
Posts: 2089
Joined: Thu Apr 18, 2019 4:14 am
State: NSW

Re: Project 2.

Post by Brett027 »

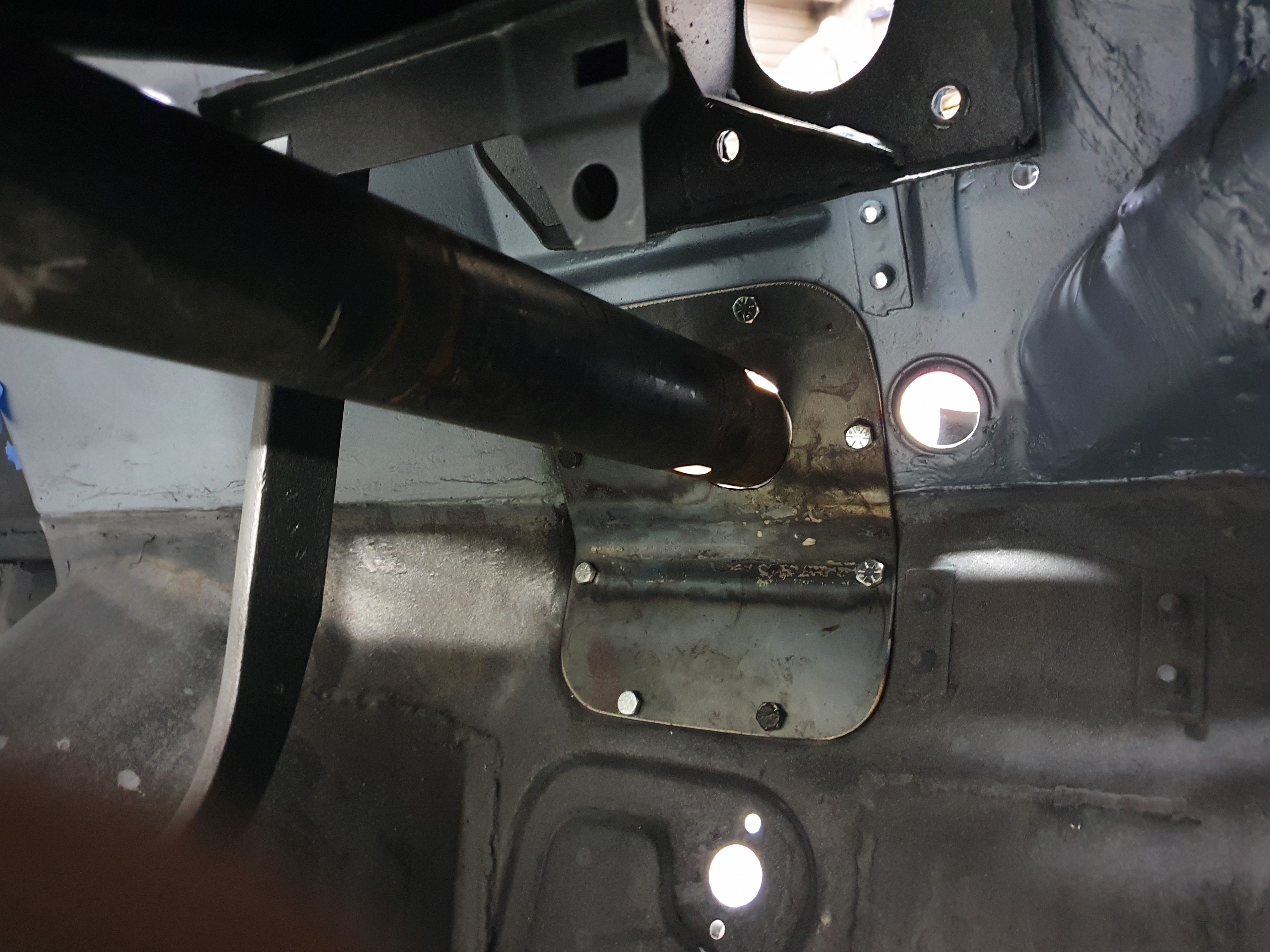

Mounting plate bits sorted, will lose flat washers and keep spring washers. Currently using Rares guard screws but will probably change for 7/16 head. Nuts now welded to back plate for ease of install. Next job is placement column and weld up. Slowly, slowly😁. It's all pretty tight....
Attachments
Sucker for a rusty bomb
Brett027
Posts: 2089
Joined: Thu Apr 18, 2019 4:14 am
State: NSW

Re: Project 2.

Post by Brett027 »

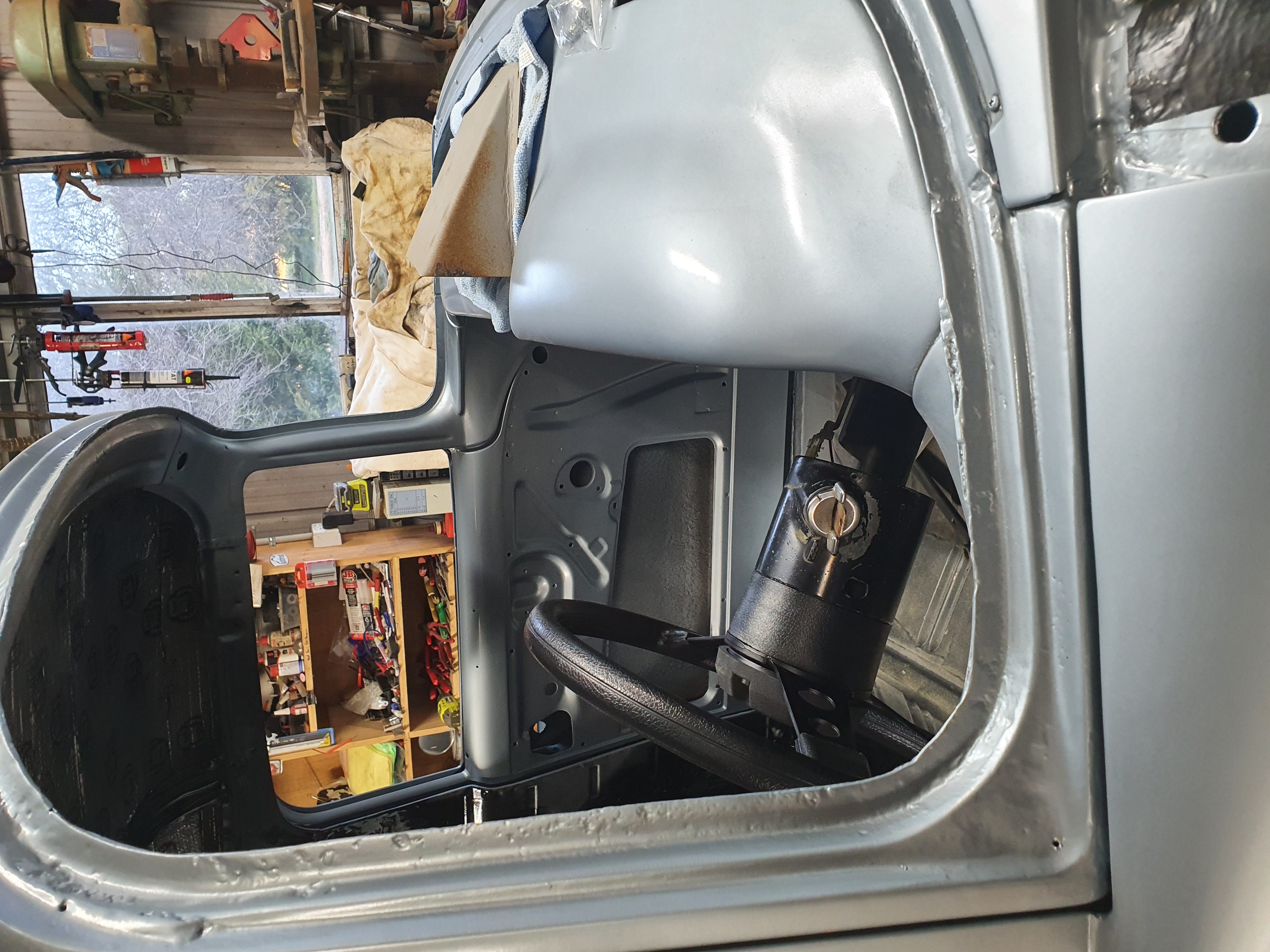

A bit closer to the finished product. It seems to be working out OK. Next job is to weld up mounting plate to column. May still add EK honey pot to make it neat or use the plastic filler that comes with it.

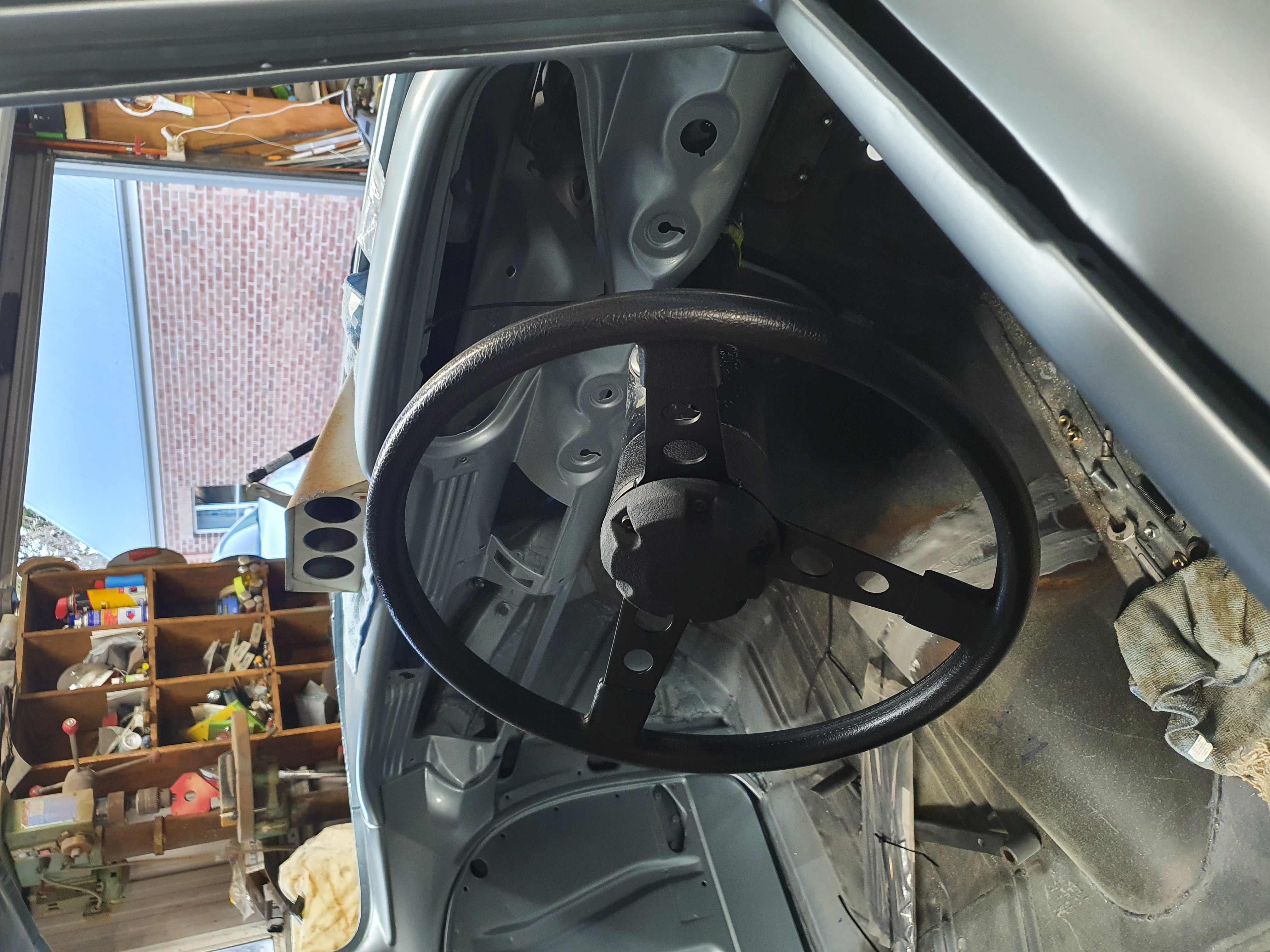

You can see my steering wheel of choice to keep the theme going🙂. Dimensions from wheel to dash are almost identical to black utes standard set up so should be OK.

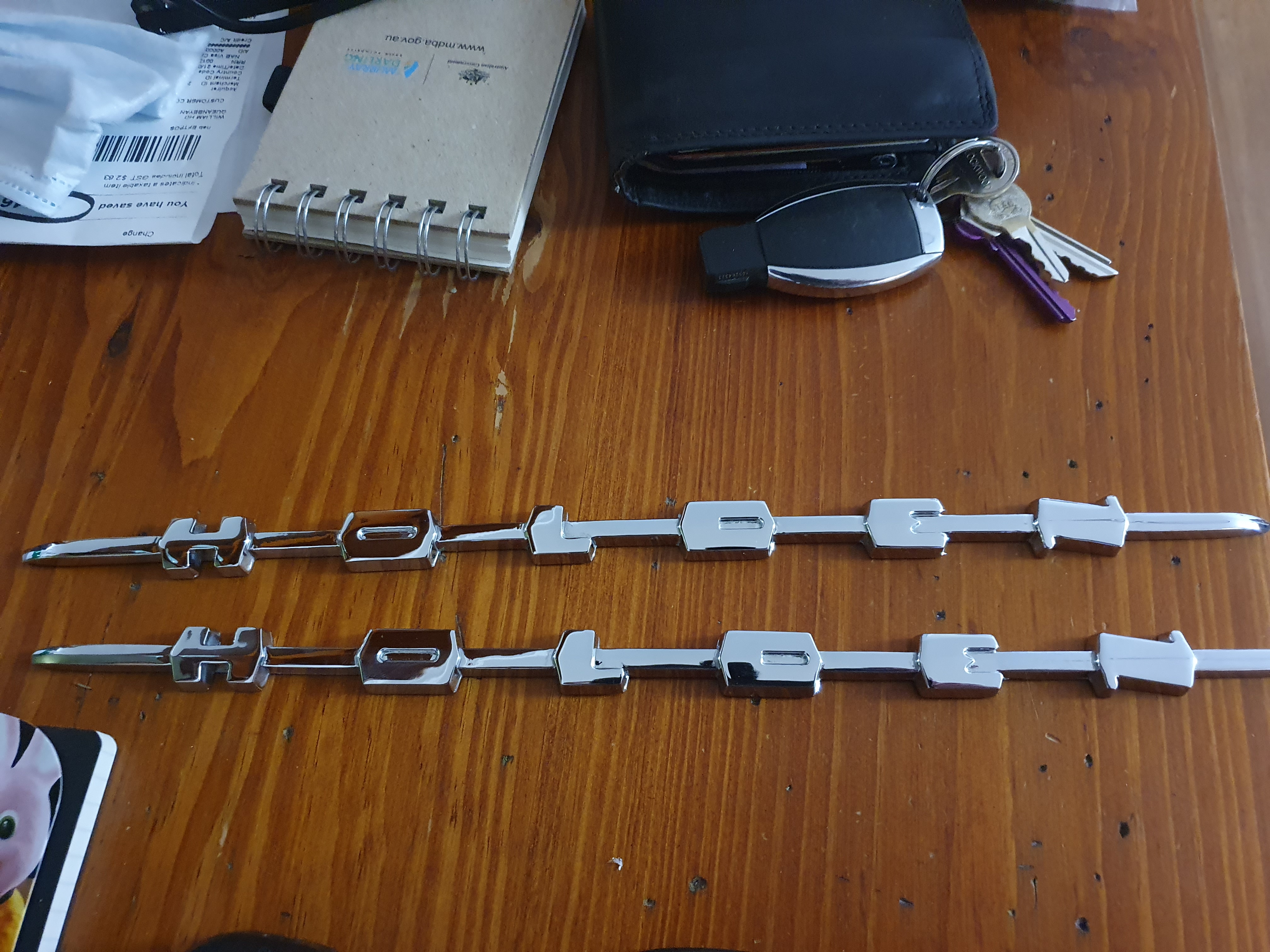

My new tailgate badges arrived today. Thanks Stephen they are spectular.
Attachments
Sucker for a rusty bomb
User avatar
Errol62
Posts: 8653
Joined: Sat Dec 06, 2014 2:44 pm
State: SA
Location: Adelaide

Re: Project 2.

Post by Errol62 »

Unique beast you are building Brett. Tidy work as ever. The boot badges look fantastic.


FB ute fixer upper, EK van on rotisserie
getting my FB ute on the road
EK van on rotisserie
In the Shed
Posts: 1622
Joined: Wed May 16, 2012 10:18 pm
State: SA
Location: South Australia

Re: Project 2.

Post by In the Shed »

No worries Brett, look forward to seeing them installed on Project 2 👍

Regards
Stephen
A day in the shed beats a day at work!
Brett027
Posts: 2089
Joined: Thu Apr 18, 2019 4:14 am
State: NSW

Re: Project 2.

Post by Brett027 »

I might have a surprise where I put one of them too😁
Sucker for a rusty bomb
Brett027
Posts: 2089
Joined: Thu Apr 18, 2019 4:14 am
State: NSW

Re: Project 2.

Post by Brett027 »

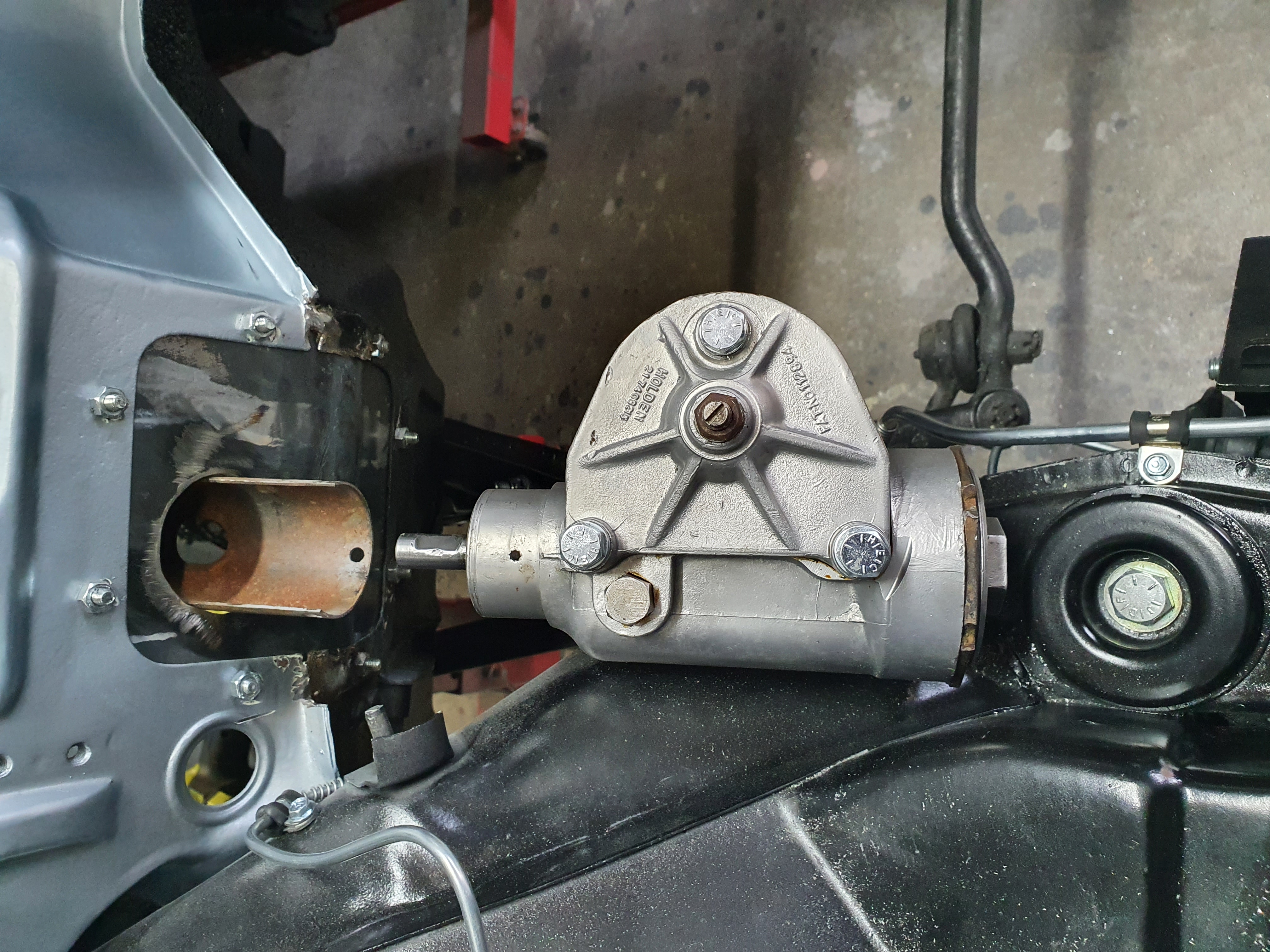

A bit more progress. Now to sort out the breakaway mounts under the dash.
Had a visit from Sam and Dave today. Great to talk about our projects.
Attachments
Sucker for a rusty bomb
Brett027
Posts: 2089
Joined: Thu Apr 18, 2019 4:14 am
State: NSW

Re: Project 2.

Post by Brett027 »

Random question: is the middle section of front bumper the same as middle section on sedan rear bumper?
Sucker for a rusty bomb
Blacky
Posts: 10995
Joined: Tue Jul 20, 2004 8:58 am
State: WA
Location: up in the Perth hills

Re: Project 2.

Post by Blacky »

Brett027 wrote: Thu Aug 04, 2022 8:58 am Random question: is the middle section of front bumper the same as middle section on sedan rear bumper?
Same pressing yes, hole placement may vary according to model and body type
